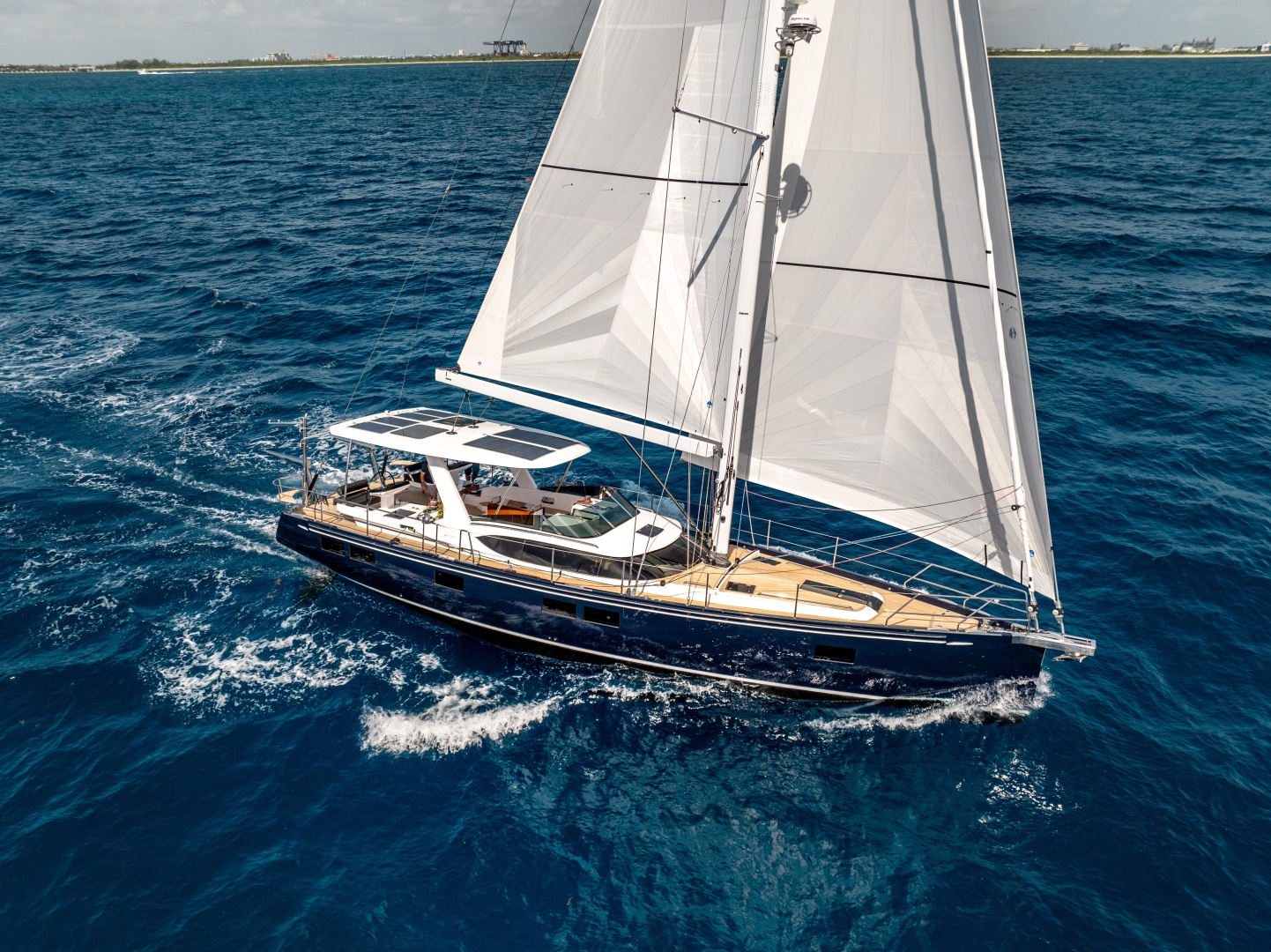

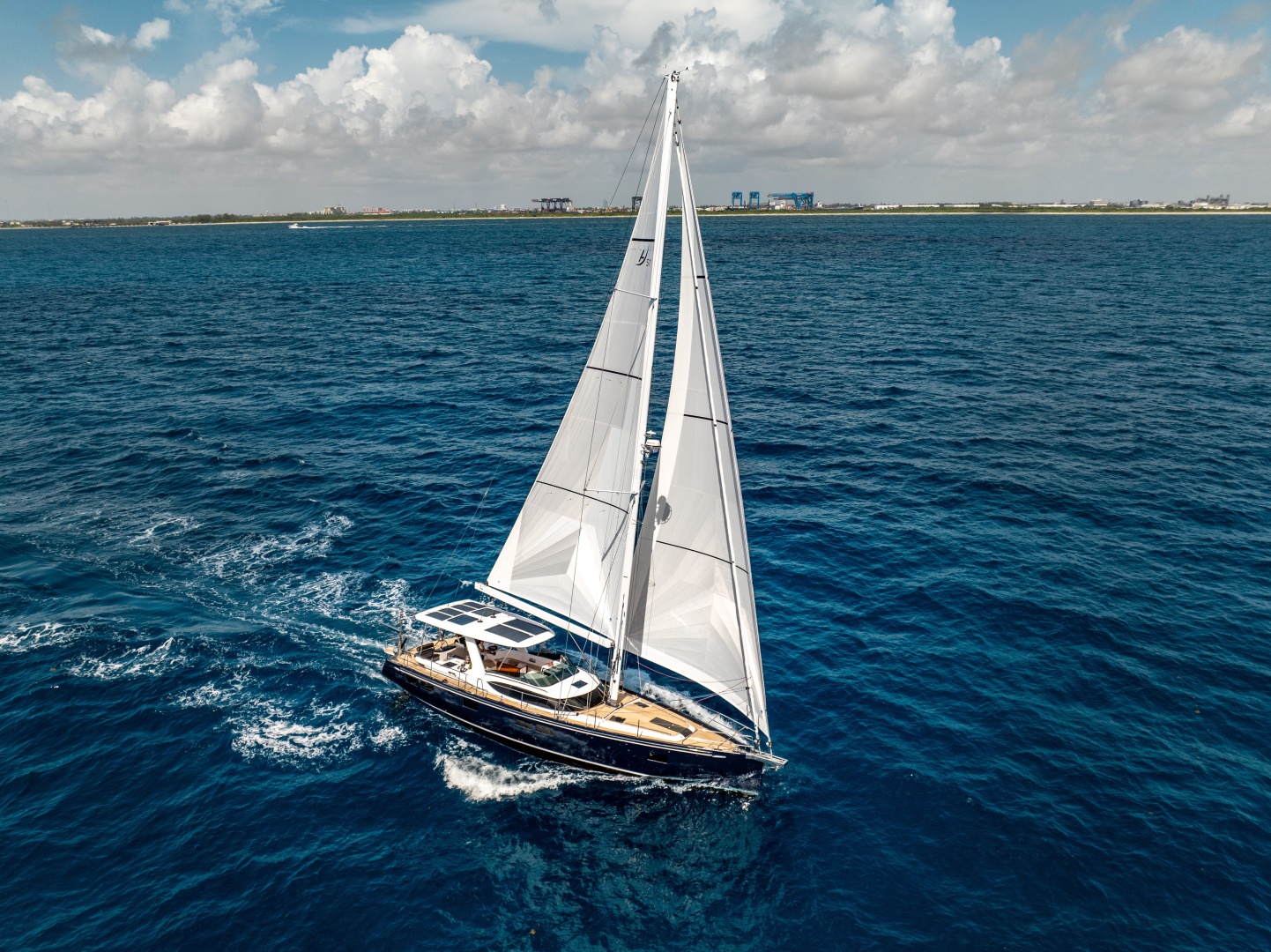

2027 Hylas H57 "H57-10"

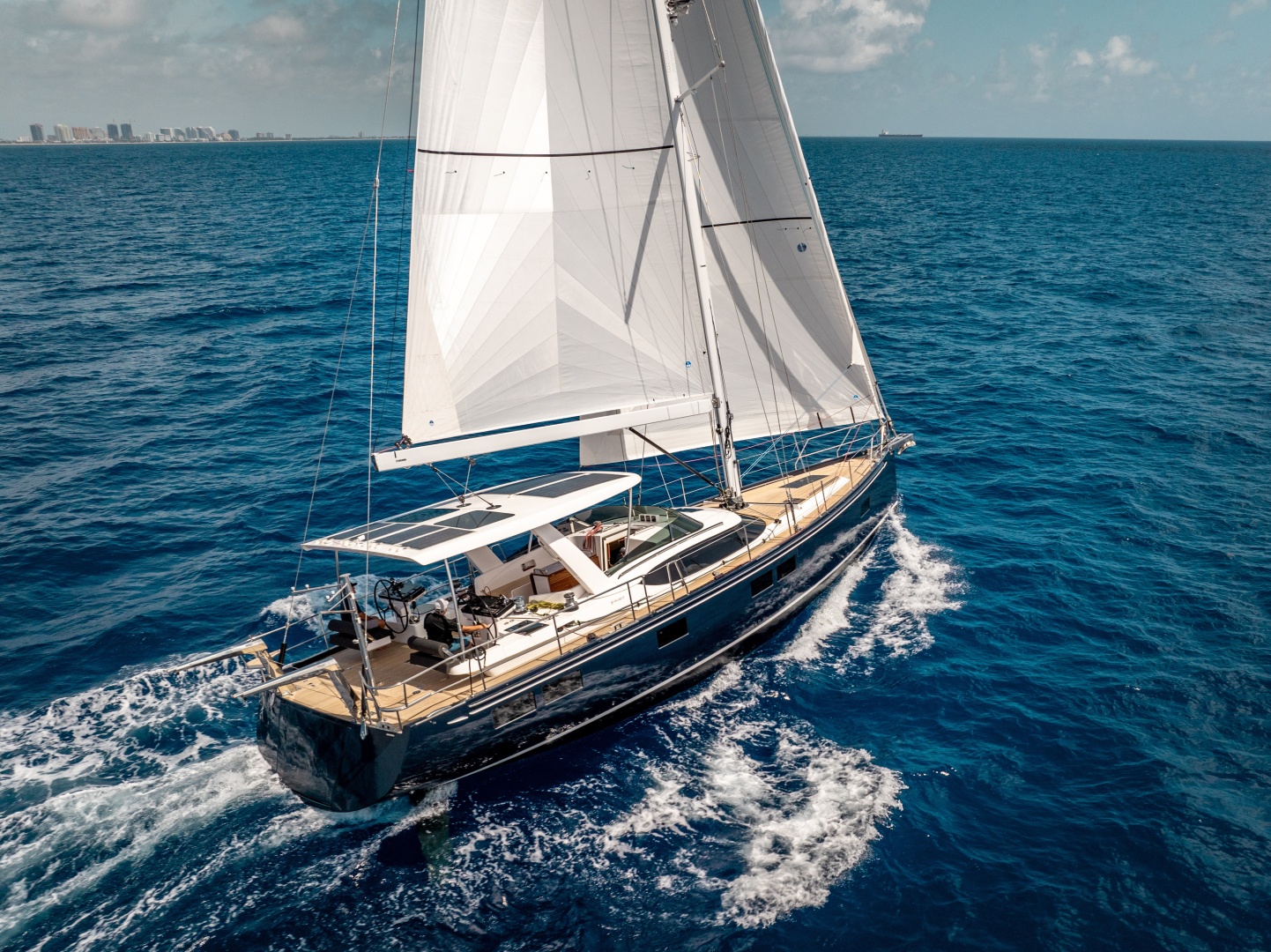

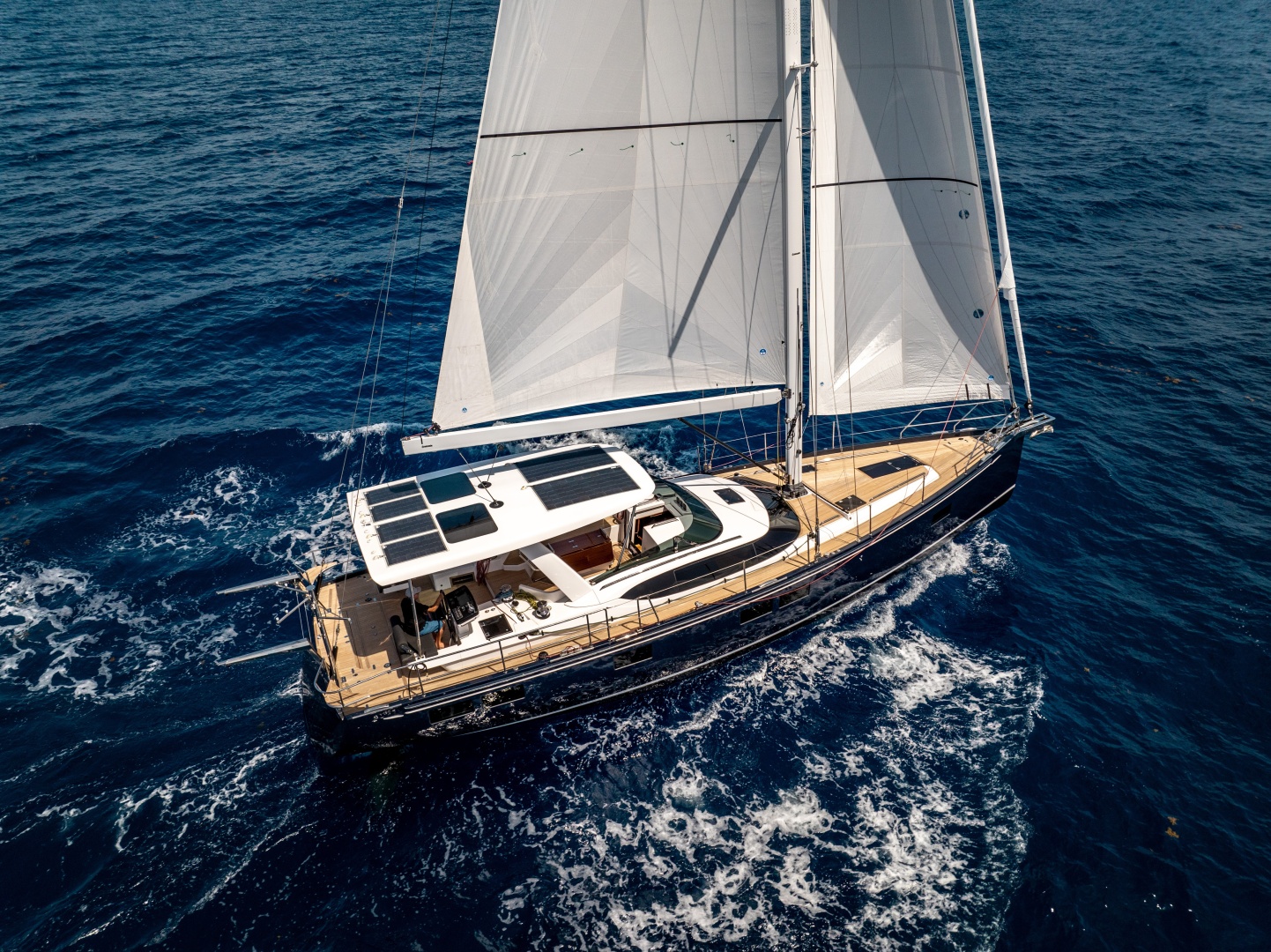

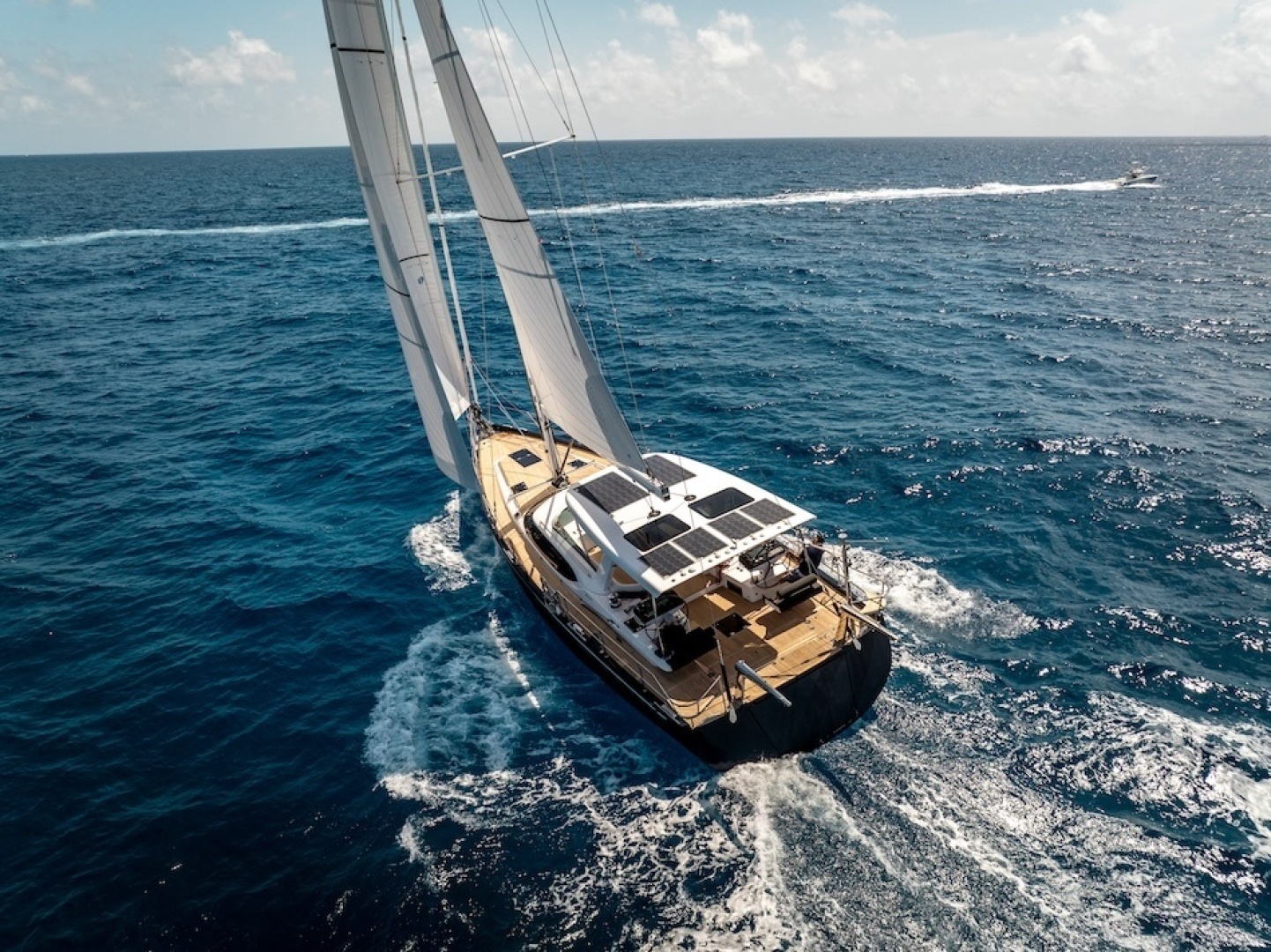

The new Hylas H57 Hull #10 represents the latest evolution of Hylas’ modern bluewater cruising yacht, combining Bill Dixon’s performance-oriented hull design with the exceptional construction, systems engineering, and attention to detail for which Hylas is known. Nearing completion and scheduled to arrive this fall, Hull #10 offers the opportunity to own a new H57 without the lengthy wait normally associated with a custom-built offshore cruising yacht.

Designed from the outset for safe and manageable short-handed sailing, the H57 combines twin helm stations and twin rudders with a powerful Solent rig and highly automated sail handling. Hydraulic furling and electric winches allow the primary sail controls to be handled from the cockpit, while the self-tacking jib makes routine maneuvering remarkably straightforward for a yacht of this size. The result is a yacht capable of serious offshore passagemaking without requiring a large crew.

Hull #10 has been particularly well specified for extended cruising. Her electrical system is centered around an 800Ah Victron lithium house bank supported by a 12kW Northern Lights generator, providing substantial capacity for comfortable life aboard. Bow and retractable stern thrusters make close-quarters maneuvering considerably easier, while the upgraded Garmin navigation package provides comprehensive navigation and vessel information at the helms and navigation station.

At anchor, a hydraulic folding swim platform with expanding aft-deck wings transforms the stern into a large waterside living area. Heavy-duty 300kg Simpson davits provide a practical solution for carrying a substantial cruising tender while keeping it readily accessible.

Below deck, the H57 takes full advantage of her 17-foot beam and extensive hull and saloon glazing to create an exceptionally bright and spacious interior. The three-cabin arrangement features a full-beam aft owner's stateroom, forward VIP cabin, versatile third cabin, two heads with separate showers, a passageway galley, and a dedicated forward-facing navigation station. Extensive storage and excellent access to machinery and systems reflect the yacht's purpose as a genuine long-range cruising platform.

Finished in classic factory white gelcoat and equipped with a shoal-draft keel, Hull #10 combines offshore capability with the flexibility to cruise destinations where deeper-draft yachts may be restricted.

The Hylas H57 is built for owners who intend to use their yacht—not simply admire it at the dock. Hull #10 combines performance, short-handed sailing capability, thoughtful systems engineering, luxurious accommodations, and serious passagemaking credentials in a yacht designed to take her owners comfortably across oceans or through years of independent cruising.

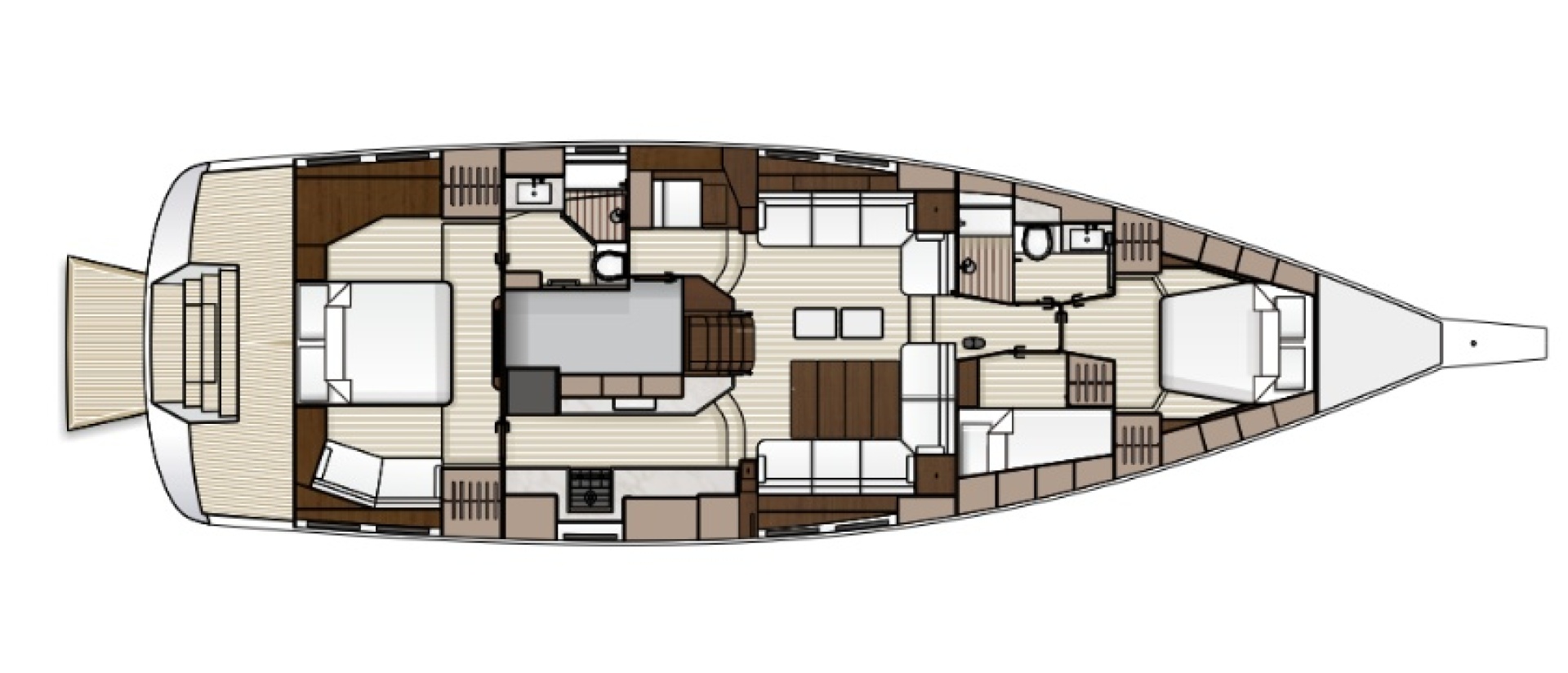

Accommodation

Three-cabin, two-head interior featuring a full-beam aft master stateroom with centerline queen berth and private head with separate stall shower, a forward VIP cabin with centerline double berth, and a forward guest cabin with single berth to starboard. The forward head, also featuring a separate stall shower, is accessible from both the forward VIP cabin and passageway for use as a day head. The layout includes a passageway galley to starboard and forward-facing navigation station to port.

Interior Comforts and Amenities

• (3) cabin, (2) head interior with aft master stateroom, forward VIP cabin and starboard forward guest cabin
• Full-beam aft master stateroom with centerline queen berth
• Private master head with separate stall shower
• Forward VIP cabin with centerline double berth
• Starboard forward guest cabin with single berth and work/storage area
• Forward head with separate stall shower and access from both VIP cabin and passageway for use as a day head
• Passageway galley to starboard
• Forward-facing navigation station to port
• Contemporary interior with square-top passageways, doors, cabinets and lockers with flush, flat white oak panels
• Non-skid wood cabin sole with epoxy-sealed end grains
• Hand-selected interior joinery and cabinetry
• Noise-dampening gaskets on passageway door frames
• Positive-locking cabin sole sections
• Furniture-grade stainless steel cabinet and locker latches
• Stainless steel locking door stops
• Contemporary white headliner with secure quick-access fastening and wood trim
• Hylas-selected fabric head wall panels
• Hylas-selected fabric headboards
• Hylas-selected fabric saloon, navigation station and cabin settee upholstery
• Companionway stair protection carpet
• (12) white Caframo Bora 24V cabin fans
• (46) BCM Malibu overhead lights
• (2) BCM Orlando overhead lights
• BCM Philly-I reading light
• (6) BCM Maestra-I reading lights
• (4) BCM Dallas interior courtesy lights
• (5) LED diffused rope lights
• LED diffused accent lighting at saloon steps, companionway steps, saloon settees, master stateroom, VIP cabin, guest cabin and galley
• LED diffused valance lighting in saloon, galley, master stateroom, VIP cabin and heads
• Black leather BCM Stilo Side navigation-station chart light

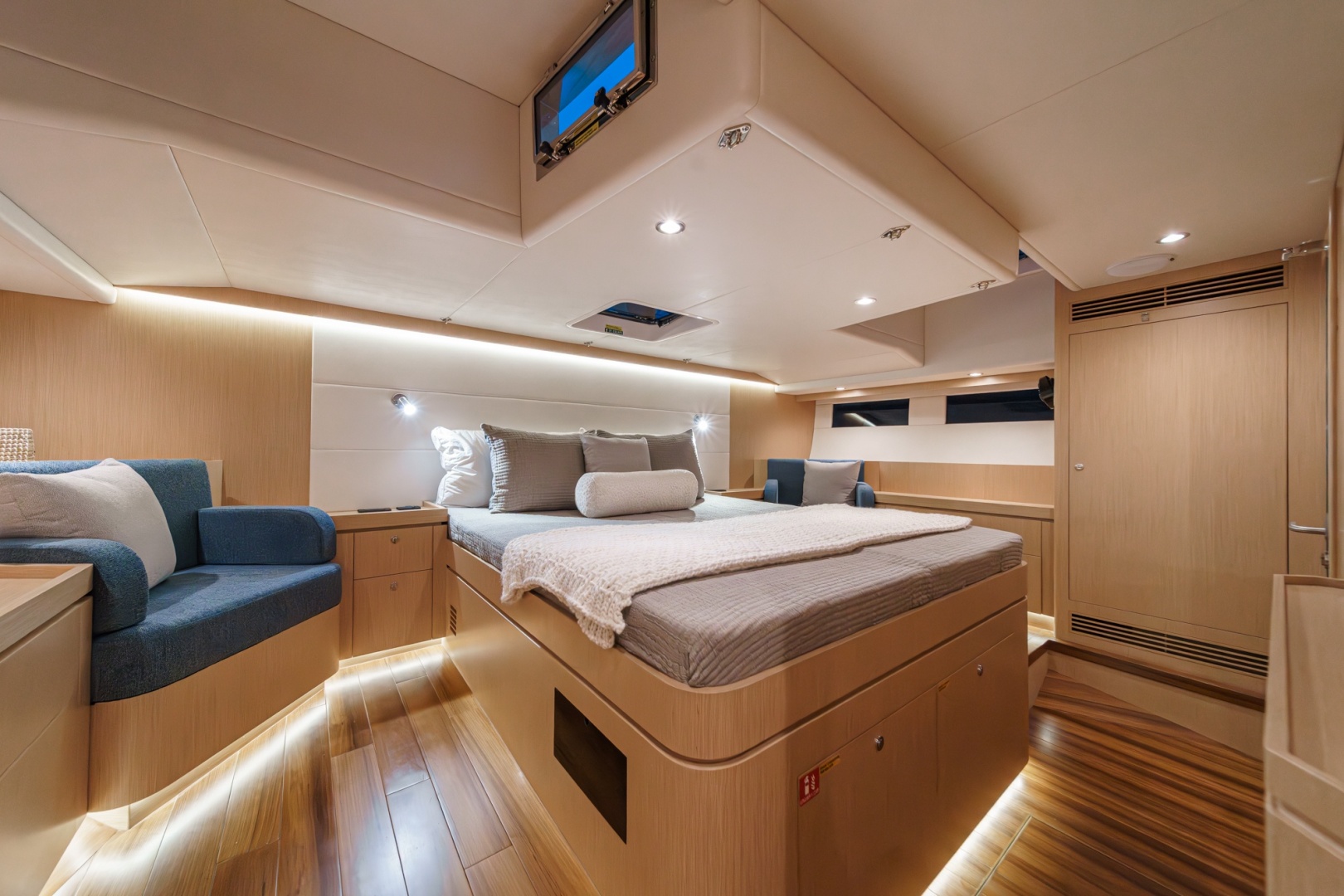

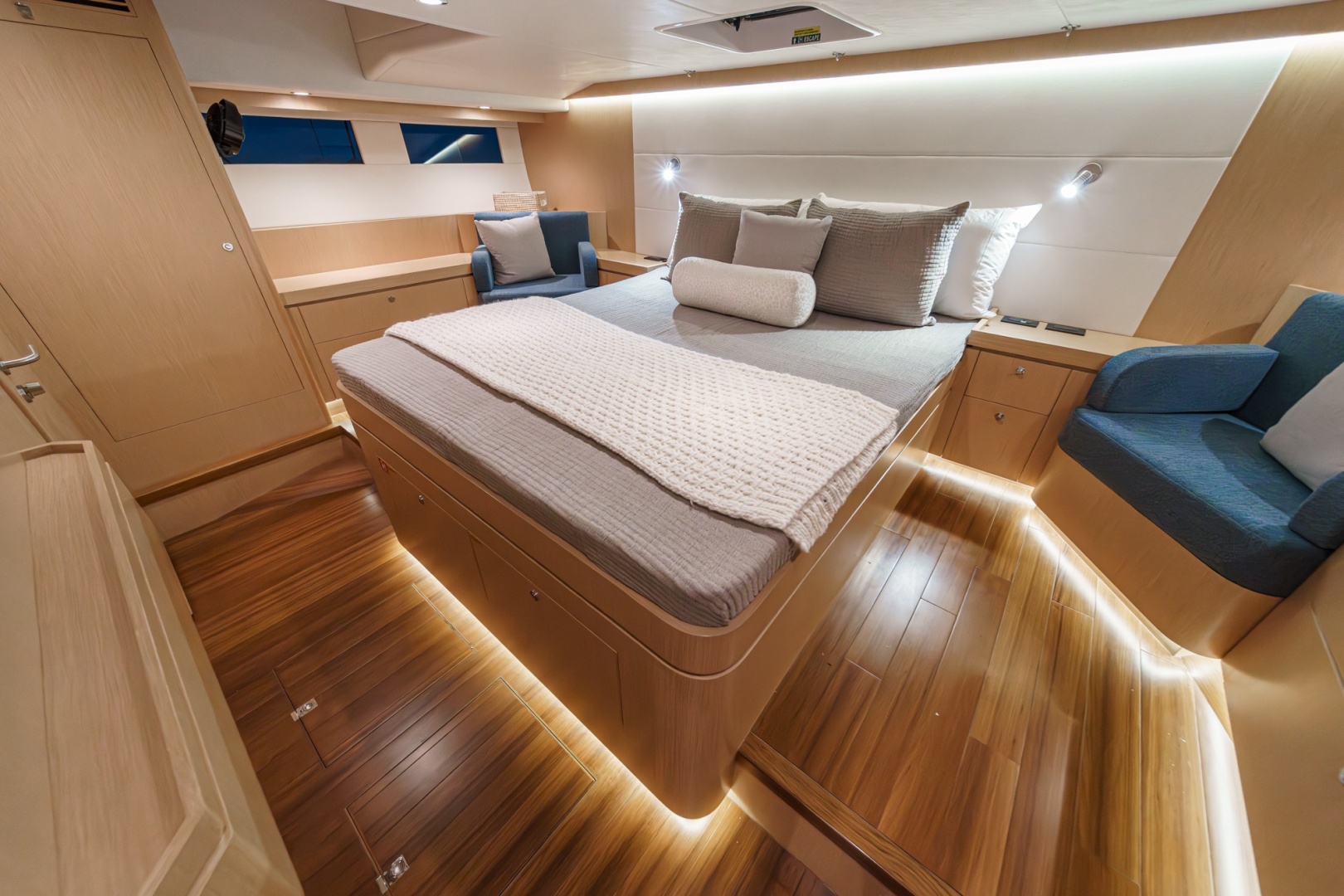

Master Stateroom

• Centerline queen berth
• Drawers port and starboard beneath berth
• Storage cabinets to port and starboard
• Extra-large cedar-lined hanging lockers port and starboard
• Nightstands with fiddled surfaces on both sides of berth
• Mirror-faced aft head door

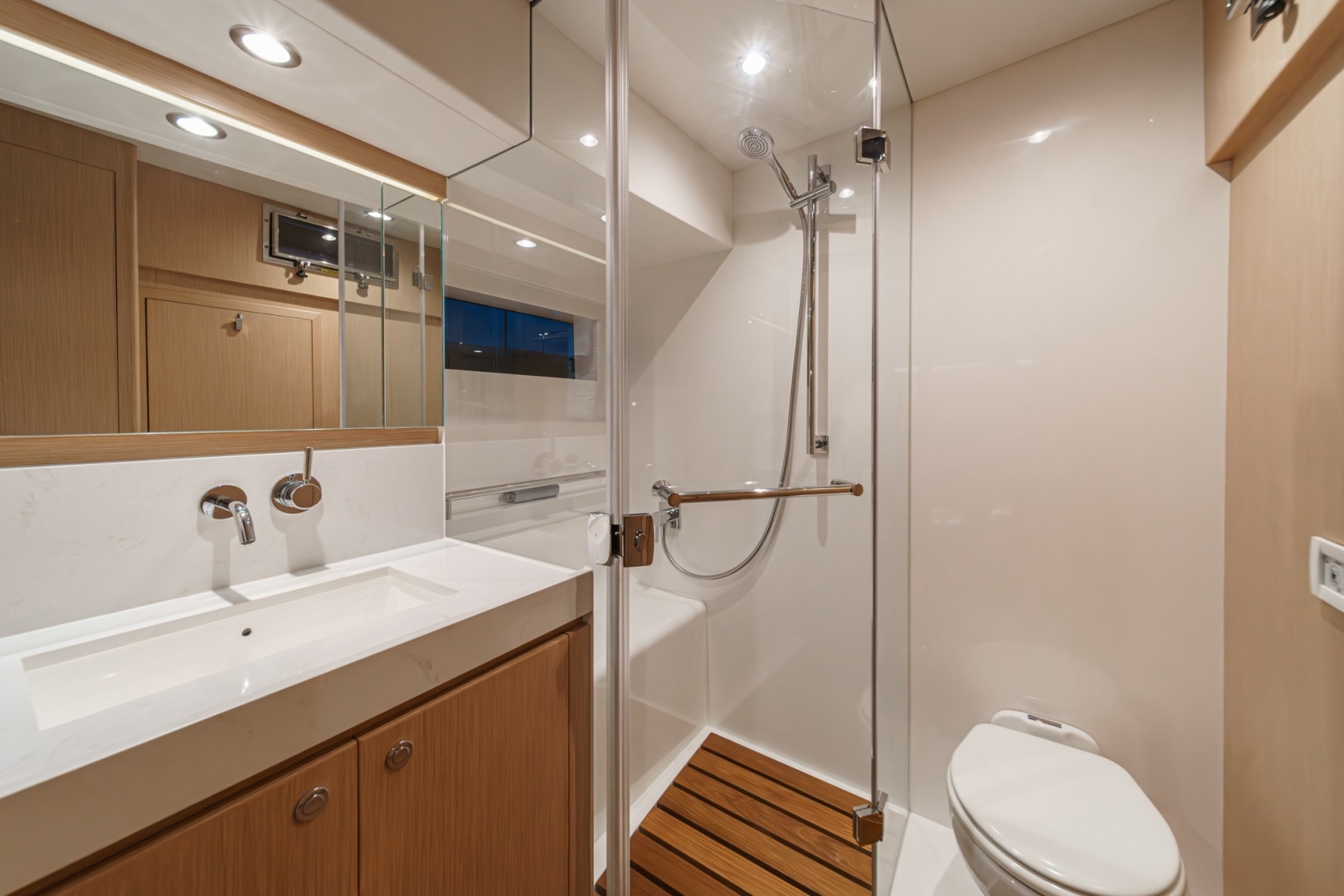

Master Head

• Raritan Marine Elegance #221HF02401 24V electric toilet with sea/freshwater inlet
• Dometic Sealand TW Series 24V premium macerator pump
• White fiberglass head base
• Hi-Macs G113 Iceberg countertop with wood fiddles
• Hylas-designed white sink
• Dornbracht sink faucet
• Mirror-faced medicine cabinet
• Double-door cabinet below sink
• Teak floor
• Separate stall shower with tempered-glass shower door
• Molded fiberglass shower seat
• Varnished teak shower floor
• Keuco shower fixture with #59551 shower head and #59587 shower set
• Keuco Moll Collection towel rack
• Keuco Moll Collection towel hook
• Keuco Moll Collection toilet paper holder
• Second engine-room access door
• Tall cabinet adjacent to second engine-room door

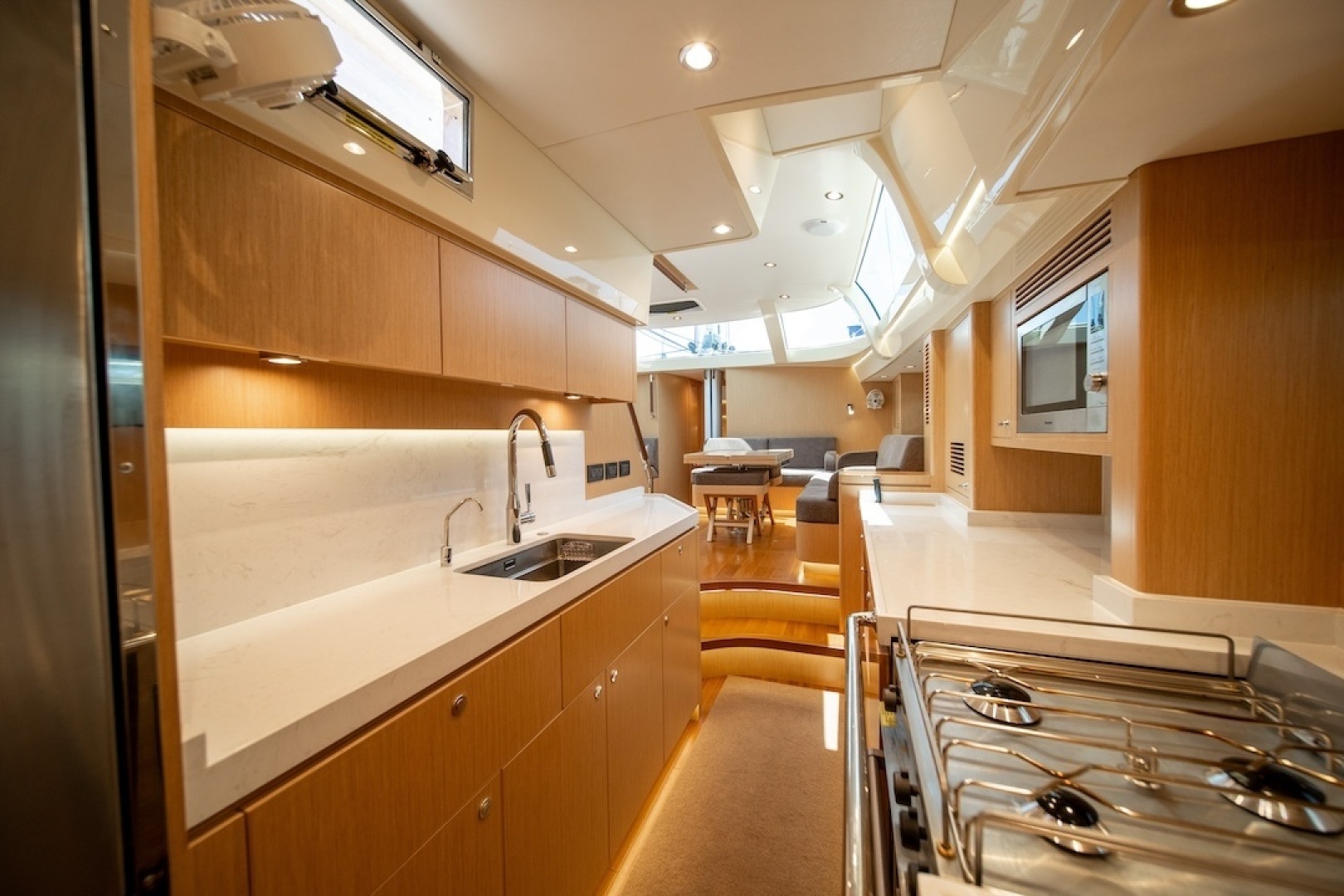

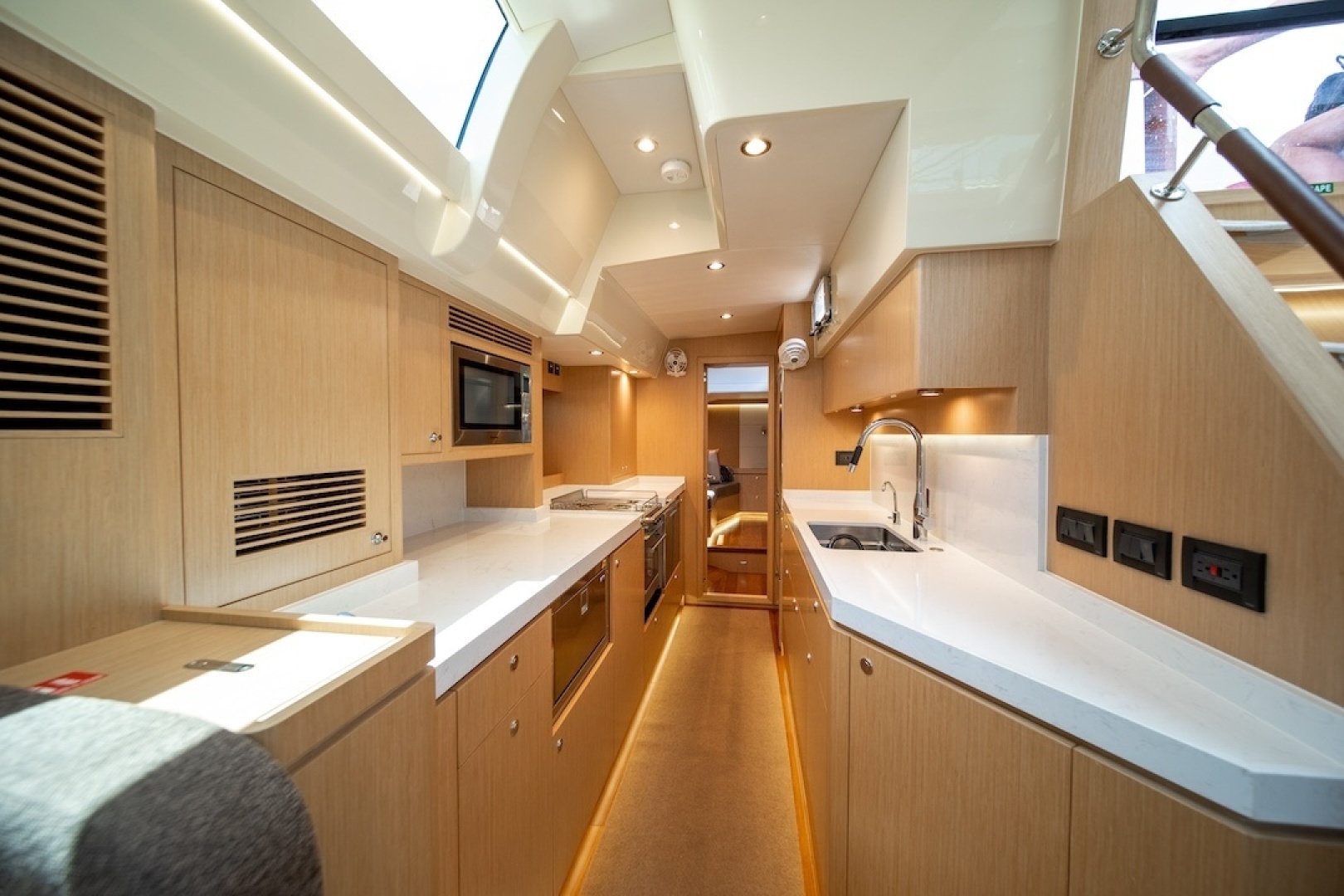

Galley

• Ocean Chef G1010G 3-burner stove/oven with glass door
• Hi-Macs G113 Iceberg countertops with wood fiddles
• GN Espace Gastronorm A large galley sink compatible with Gastronorm accessories
• Dornbracht galley faucet
• Vitrifrigo DW360 BTX refrigerator/freezer with 5.5 cu. ft. upper refrigerator and 5.1 cu. ft. lower freezer
• Steelock flush refrigerator/freezer latches
• Panasonic NN-CD87KS Home Chef 4-in-1 microwave with air fryer, convection bake, broiler and inverter, or similar
• Overhead galley storage cabinets
• Seagull X-2KF drinking-water filtration system with ice-maker plumbing

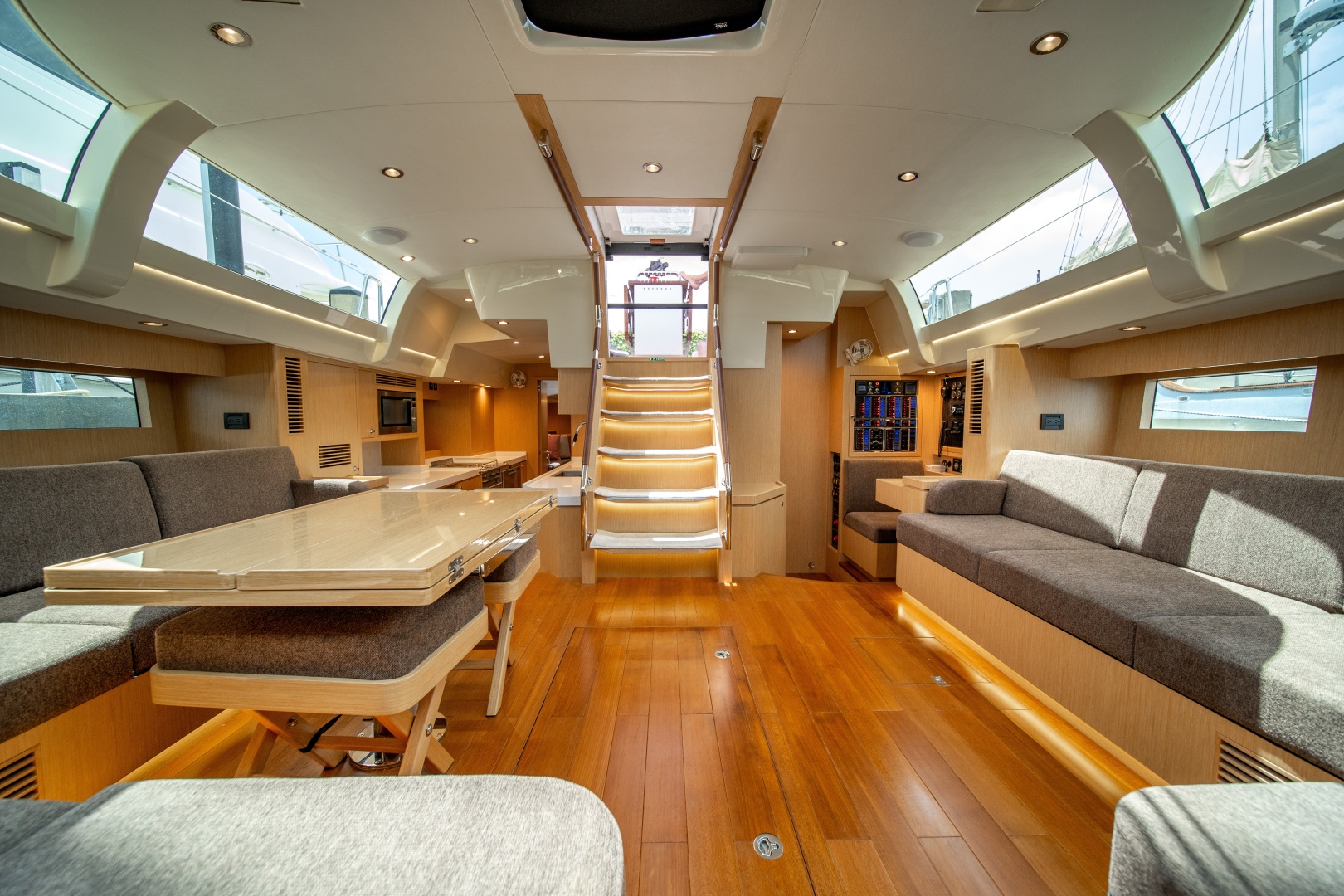

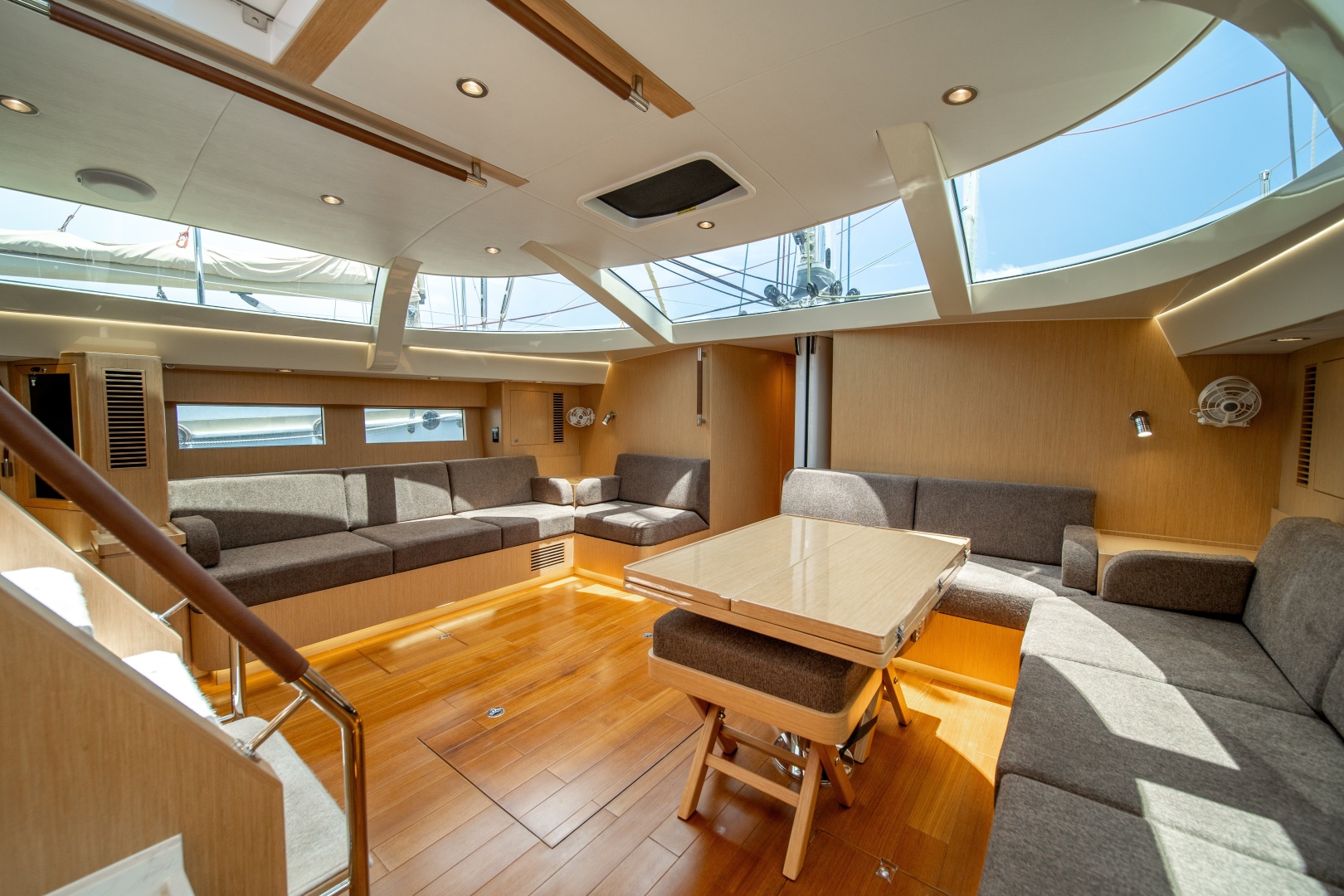

Main Saloon

• (5) panoramic 3D laminated curved safety-glass windows with carbon-fiber reinforced frame
• Port aft-facing lounge seat
• Starboard double aft-facing lounge seat
• Varnished solid oak saloon table with (2) folding leaves
• Port and starboard fiddled end tables
• Port and starboard overhead cabinets
• Extensive storage beneath settees and lounge seats
• Top-access storage in end tables
• Stainless steel handhold with leather wrap on forward bulkhead
• (2) full-length overhead stainless steel handholds with leather wrap
• Manual lifting mechanism converts dining table to coffee table
• 5-step companionway staircase with non-skid treads and leather-wrapped stainless steel handrails

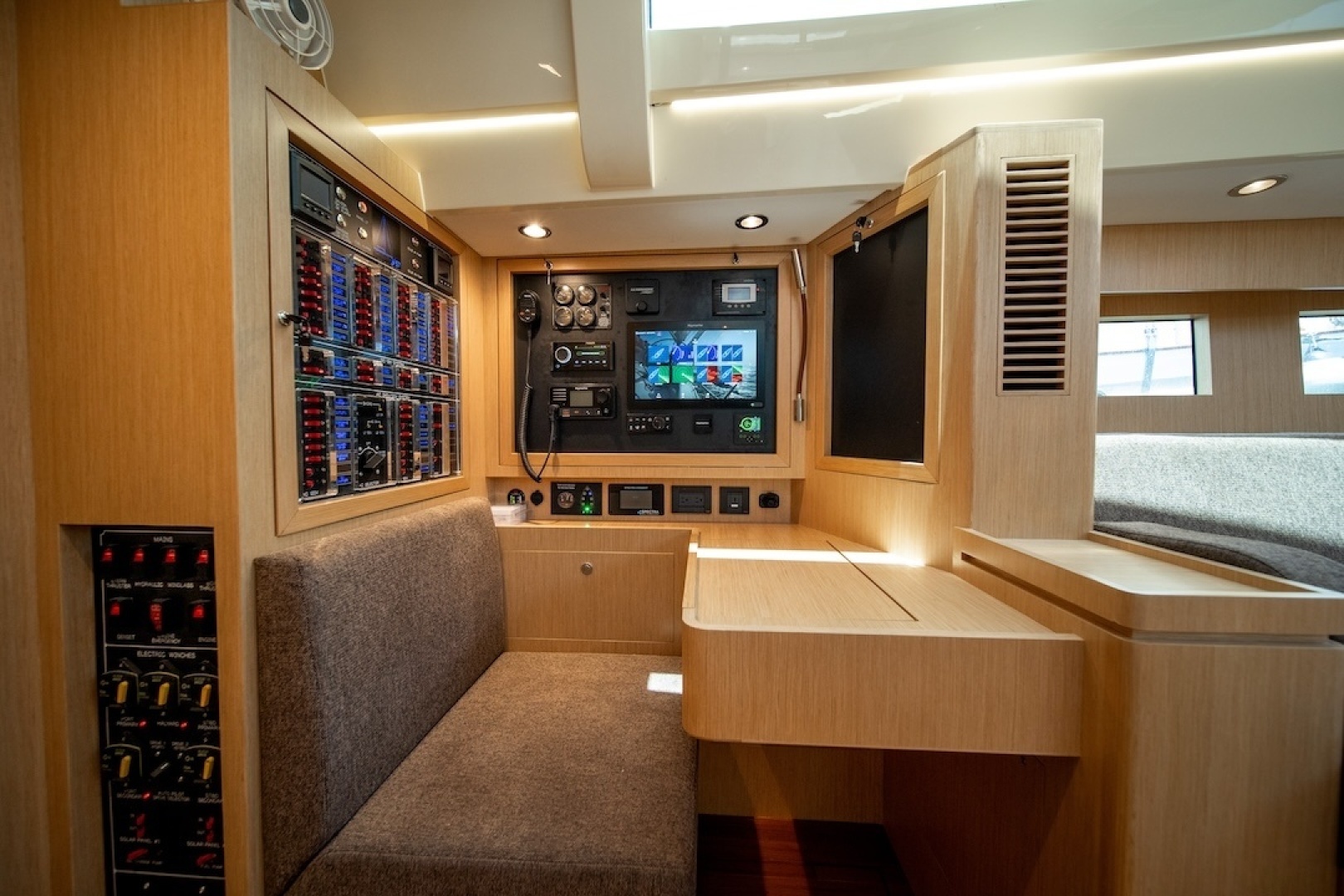

Navigation Station

• Forward-facing navigation desk with folding chart table
• Upholstered bench seat
• Hinged instrument panel with fast-pin access
• Hinged electrical panel with fast-pin access
• Chart light
• 12V DC outlet

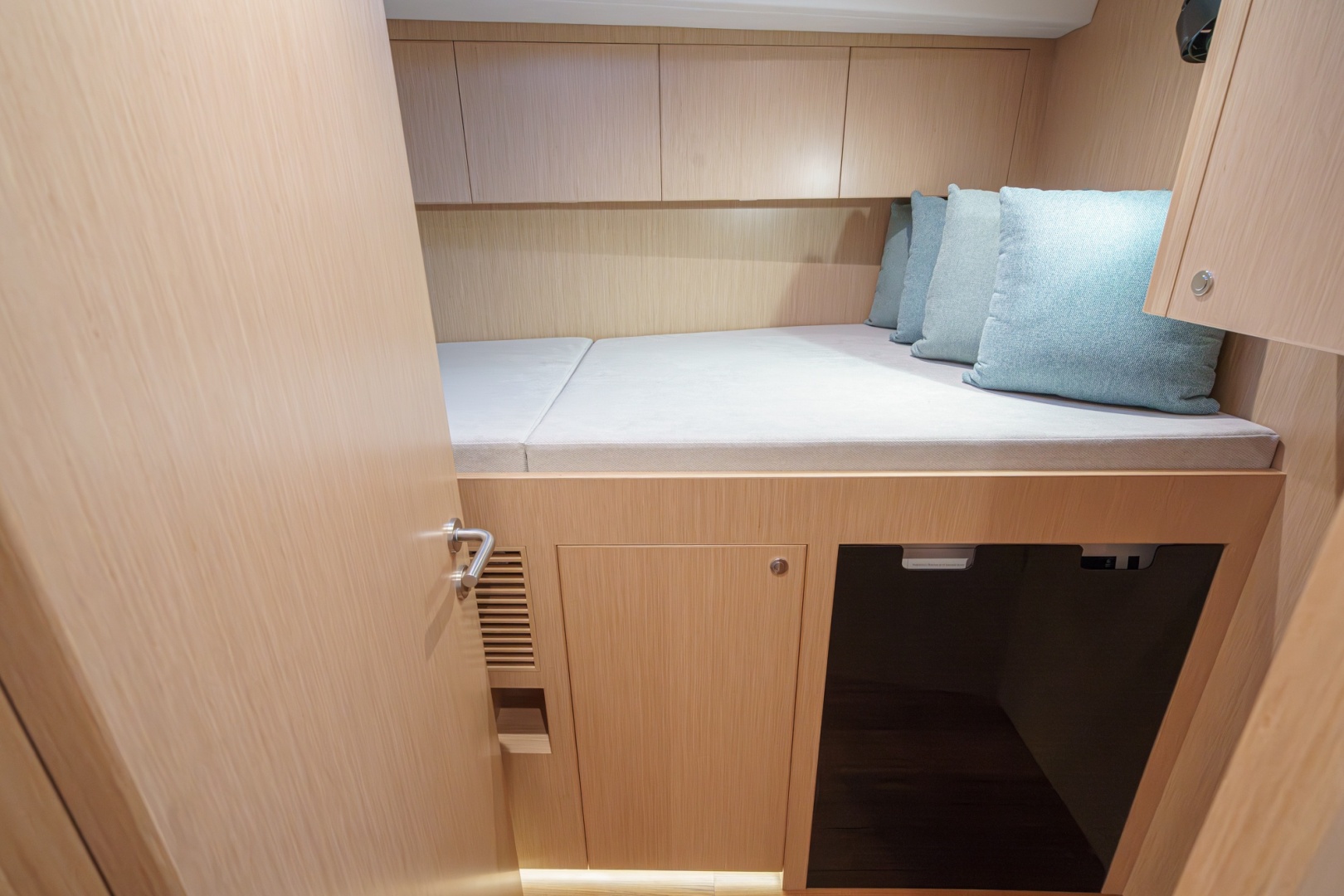

Forward Guest Cabin

• Single berth with storage beneath
• Forward storage area designed for potential washer/dryer installation
• Hydraulic-system ventilation and fan
• Overhead locker inboard of berth
• Cedar-lined hanging locker
• Stainless steel protection plate/work surface

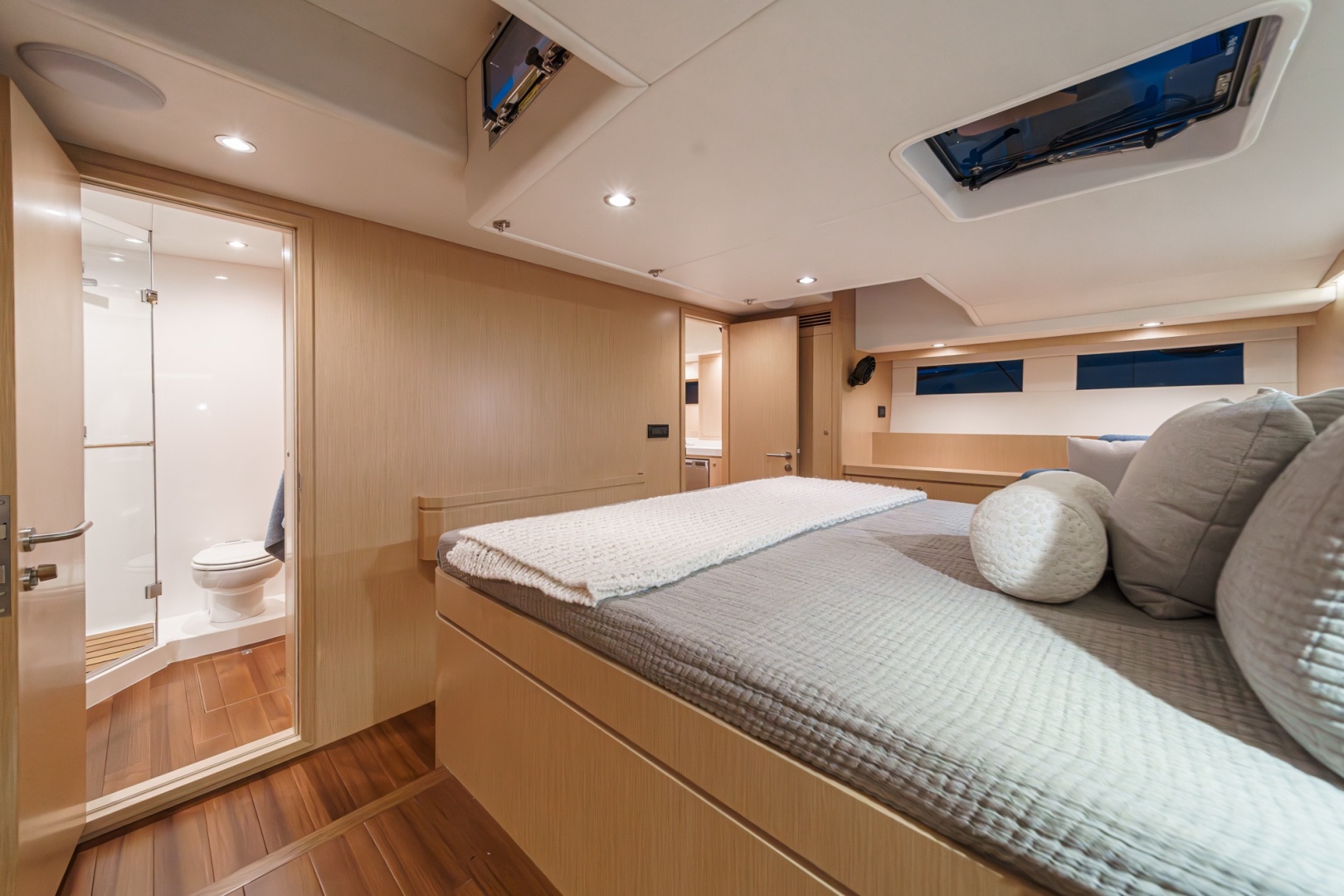

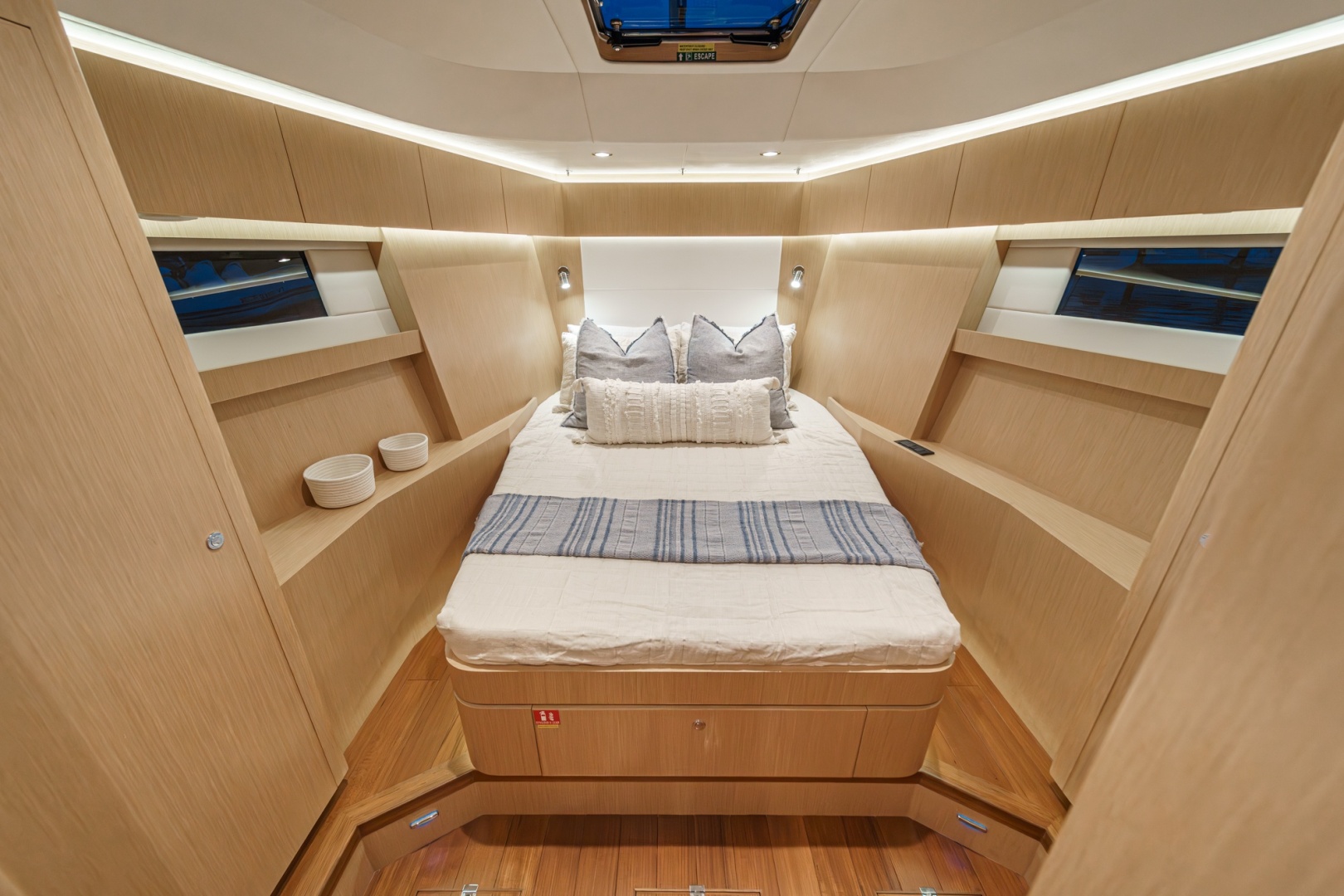

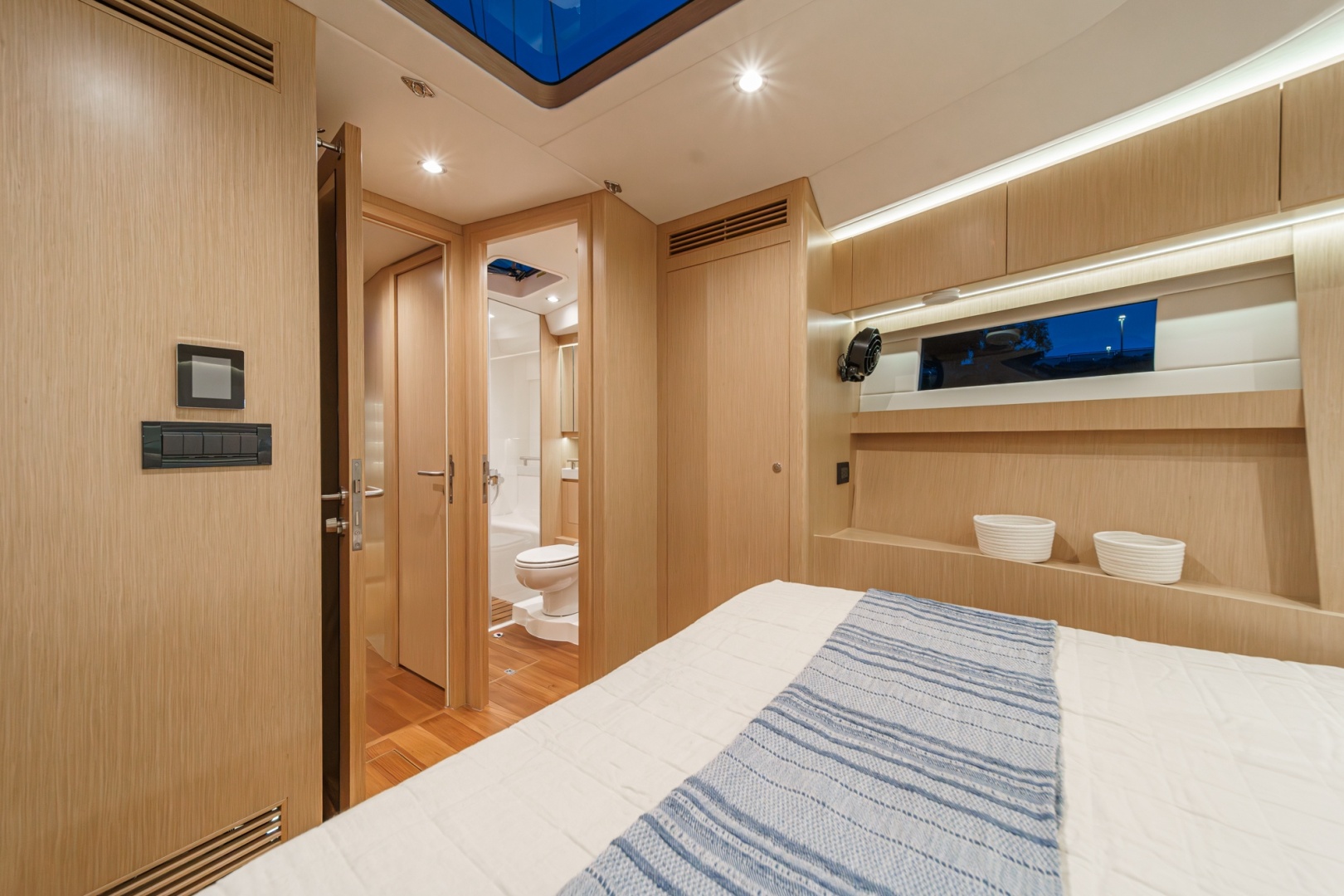

Forward VIP Cabin

• Centerline double berth with top-loading storage beneath
• Drawer beneath berth
• Cedar-lined hanging lockers port and starboard
• Large outboard overhead cabinets
• Fiddled wood surfaces outboard of berth
• Mirror-faced aft head door

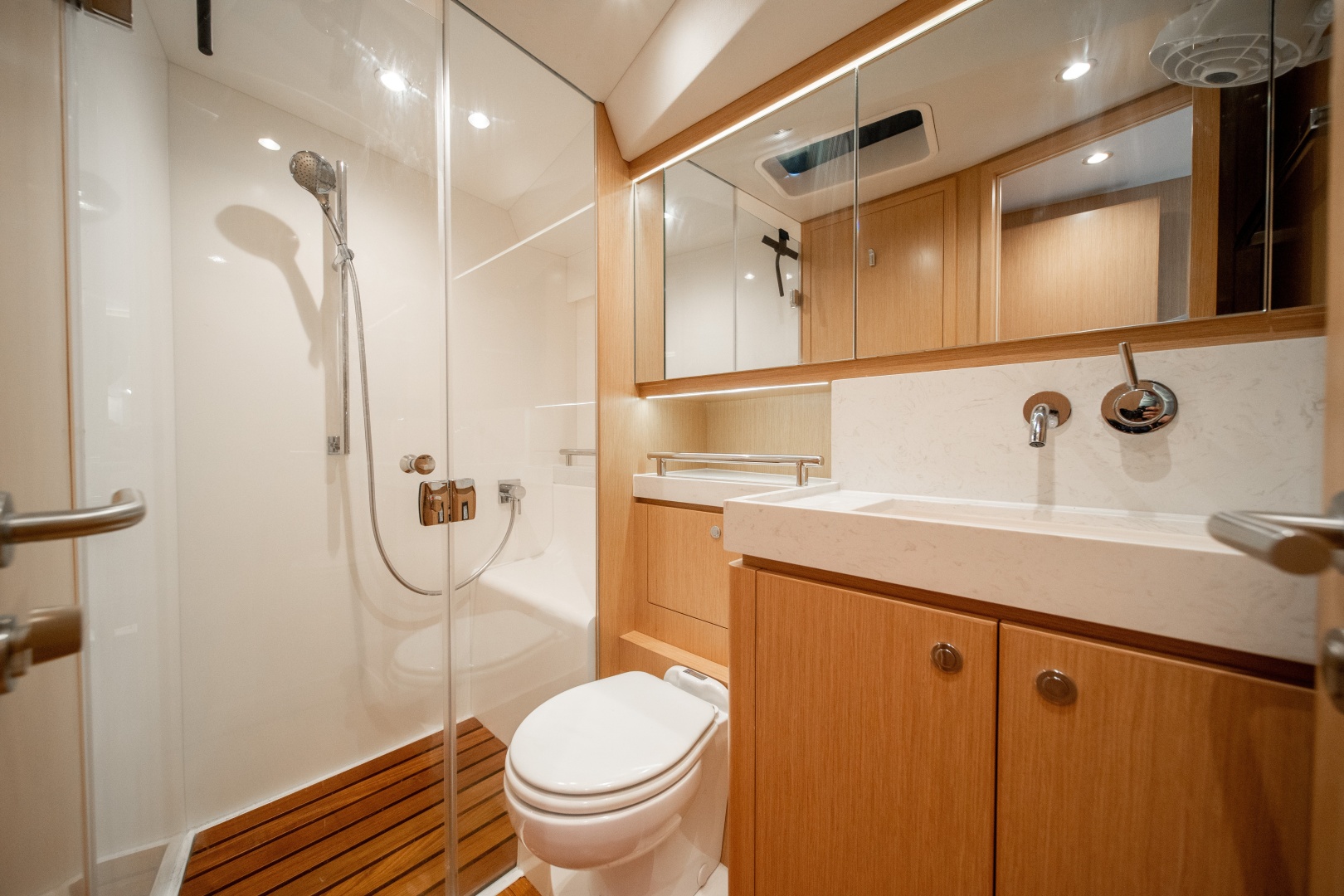

Forward Head

• Raritan Marine Elegance #220HS02401 24V electric toilet with sea/freshwater inlet
• Dometic Sealand TW Series 24V premium macerator pump
• White fiberglass head base
• Hi-Macs G113 Iceberg countertop
• Hylas-designed white sink
• Dornbracht sink faucet
• Mirror-faced medicine cabinet
• Double-door cabinet below sink
• Teak floor
• Separate stall shower with tempered-glass shower door
• Molded fiberglass shower seat
• Varnished teak shower floor
• Keuco shower fixture with #59551 shower head and #59587 shower set
• Polished chrome Keuco Moll Collection towel rack
• Polished chrome Keuco Moll Collection towel hook
• Polished chrome Keuco Moll Collection toilet paper holder

Electronics and Navigation

• Garmin GPSMAP 8616 multifunction chartplotters with mapping at both helms
• Garmin GRID 20 remote keypads at both helms
• Additional Garmin chartplotter at navigation station
• Garmin GMR Fantom 18x dome radar
• (3) Garmin TD 50 touchscreen displays at companionway
• Garmin TD 50 touchscreen display at each helm
• (2) Garmin GHC 50 autopilot control displays, (1) at each helm
• (2) Jefa 17-DUT-S624 transmission autopilot drive units
• Garmin GA 38 GPS antenna
• 5" Ritchie Globemaster FD-500-EP flush-mounted compass with red LED backlighting
• Maretron system for deck lighting and sailing-mode switching
• Garmin VHF 315 marine VHF with AIS receiver
• Garmin GHS 11 wired VHF handset at helm
• Garmin AIS 800 black-box AIS transceiver
• Speco 5" x 8" weatherproof PA/loudhailer speaker mounted on mast
• Fusion RA770 stereo with AM/FM, Bluetooth, SiriusXM and auxiliary input
• Sony XM-N502 amplifier
• Stereo speakers in master stateroom, saloon and hardtop
• Saloon pre-wired for electric TV lift, accommodating approximately 43" television
• Master stateroom pre-wired for wall-mounted television, accommodating approximately 65" television

Electrical Systems

AC Power System

• 50A shore power connection at bow with access plate over anchor locker and outlet in sail locker
• Bridgeport Magnetics Dual MP6 50/60Hz, 12kVA/50A automatic voltage-boost system
• Northern Lights 12kW generator
• Northern Lights generator water separator
• Dedicated Racor 500 generator fuel/water separator with flame guard
• Generator control panel at navigation station
• Victron MultiPlus 24/3000/70-50 120V inverter/charger system
• Newmar PT-24-95U 50/60Hz charger
• Victron Phoenix Charger 12/50 (2+1), 120-240V, for 12V service, engine-start and generator-start batteries
• (9) Vimar 110V AC dual outlets
• (5) Vimar 110V GFCI-protected outlets
• Weatherproof exterior Vimar 110V GFCI outlets in forward sail locker and transom garage

DC Battery Banks

• 24V Victron lithium house bank consisting of (4) 200Ah batteries for 800Ah total capacity
• Dedicated 12V Lifeline GPL-27T 100Ah AGM engine-start battery
• Dedicated 12V Lifeline GPL-24T 80Ah AGM generator-start battery
• Dedicated 12V Lifeline GPL-8DL 125Ah AGM service battery

DC Charging

• Mastervolt 24V 110A high-output primary alternator with 3-stage regulator dedicated to house bank
• Secondary 12V 180A alternator for service, engine-start and generator-start batteries
• Victron Orion-Tr Smart 24/12-30 360W DC-DC charger for 12V service bank

DC Distribution and Switching

• Hylas Signature electrical distribution panel with hinged component access
• BEP Marine AC and DC system monitors
• BEP Heavy-Duty main battery switches for 12V and 24V circuits
• Blue Sea Systems ML-RBS remote battery isolator switches for bow thruster, engine, windlass, electric winches and generator circuits
• Blue Sea Systems e-Series 12V service-to-battery-bank parallel switch for emergency starting
• (2) Marinco 12V DC outlets

Wiring, Grounding and Installation

• Organized electrical architecture using high-quality tinned copper wiring specified for minimal voltage drop
• Electrical wiring numerically labeled and traceable from source to load
• Wiring labeled at both ends throughout yacht
• Copper grounding strips running the length of the hull and incorporated into the yacht's bonding system

Lighting

• (4) engine-room utility lights
• Forward sail-locker utility light
• (3) lazarette utility lights
• Transom-garage utility light
• Port and starboard LED Lopolight red/green navigation lights
• Lopolight LED white stern light with 2 NM visibility
• LED Lopolight steaming light
• LED 360-degree white anchor light
• LED tricolor masthead light
• LED foredeck light
• (4) transom courtesy lights
• (4) cockpit-well courtesy lights
• (4) cockpit-helm courtesy lights
• (8) warm-white toe-rail courtesy lights
• (8) red/warm-white BCM Malibu hardtop ceiling lights with dimmers
• Pair of Quick CLG EVO 30W cool-white/blue through-hull underwater LED lights with dedicated switch

Deck and Hull Equipment

Hull and Keel

• Factory white gelcoat hull
• E-glass fiberglass hull laminates with closed-cell foam core, vacuum infused for controlled resin-to-fiber ratio
• Solid multiaxial fiberglass reinforcement and backing plates at V1 and D1 chainplates
• Hylas Signature watertight bow and stern sections
• Structurally reinforced and sealed forward collision bulkhead
• Segmented and sealed full-beam lazarette and stern locker
• Limber holes throughout hull for drainage to bilge sump
• High-quality below-waterline thru-hulls, seacocks and valves
• (5) coats of epoxy barrier coating
• (12) oversized flush-mounted hull portlights
• SSB grounding plane incorporated into hull
• Full-spectrum finished-hull inspection and analysis
• Rub rail with 316 stainless steel striker
• Red Micron Extra 2 antifouling, (3) coats
• Off-white Alexseal cove stripe
• Off-white Alexseal boot stripe
• Shoal-draft 6'5" external solid lead keel with 3% antimony
• (14) M30 and (2) M16 stainless steel keel bolts
• Transverse-mounted 16mm keel backing plates

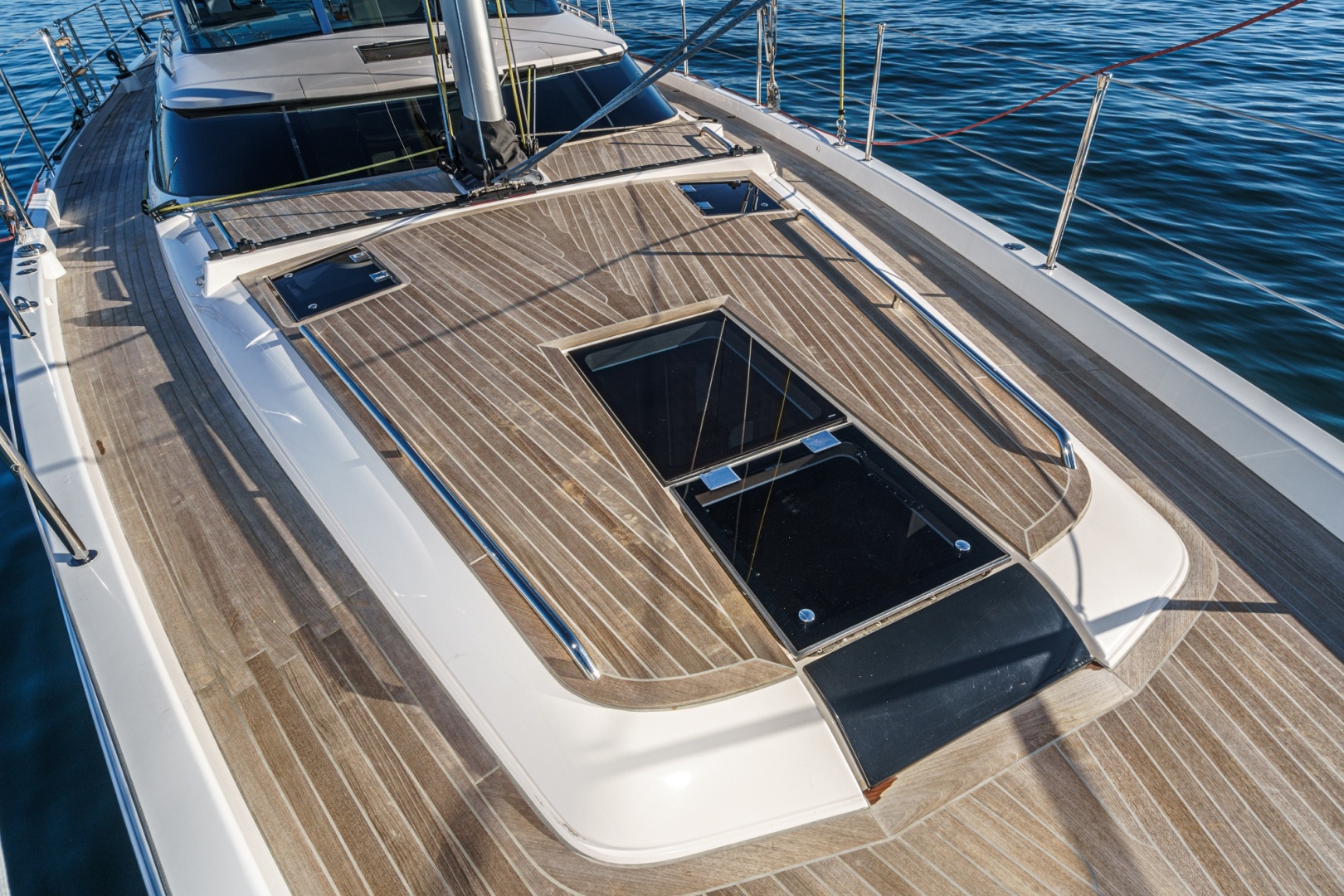

Deck Construction

• Hand-laid E-glass fiberglass deck with Airex closed-cell foam core and vinylester resin
• Carbon structural reinforcement incorporated into deck
• Solid single-skin laminate replacing core at high-load hardware locations
• White isophthalic gelcoat deck finish
• Substantial recessed hull-to-deck flange with multiaxial fiberglass reinforcement, 5200 adhesive and inner/outer laminate bonding
• Molded fiberglass cap rail with raised bulwark
• (12) 12.6" Seasmart pop-up deck cleats with substantial backing
• 32" high, 1-1/4" diameter 316L stainless steel stanchions
• Port and starboard boarding gates
• Lifering mounting bracket integrated into port stanchion
• Stainless steel foredeck and full-length coachroof handrails
• Port and starboard fold-down stainless steel boarding ladders with teak steps
• Hylas Signature stern quarter seats with 316 stainless steel frames and varnished teak slats
• Teak deck
• Hylas Signature 316 stainless steel pushpit extending to midship gates
• Simpson Series 10 S300 davits rated to 300kg safe working load
• Dyneema davit lifting lines
• Custom tender lifting bridle
• Stainless steel davit bases

Transom and Swim Platform

• Hydraulic automated folding fiberglass swim platform
• Folding aft-deck wings expand usable aft deck when swim platform is stowed
• Stainless steel opening transom gate
• Pair of 7" aluminum Seasmart cleats integrated with platform
• Dinghy guard plate on aft edge of swim platform
• Single pushpit lifeline gate
• Stainless steel boarding handrails
• Stainless steel folding swim ladder
• Port-side flagpole
• Large transom garage

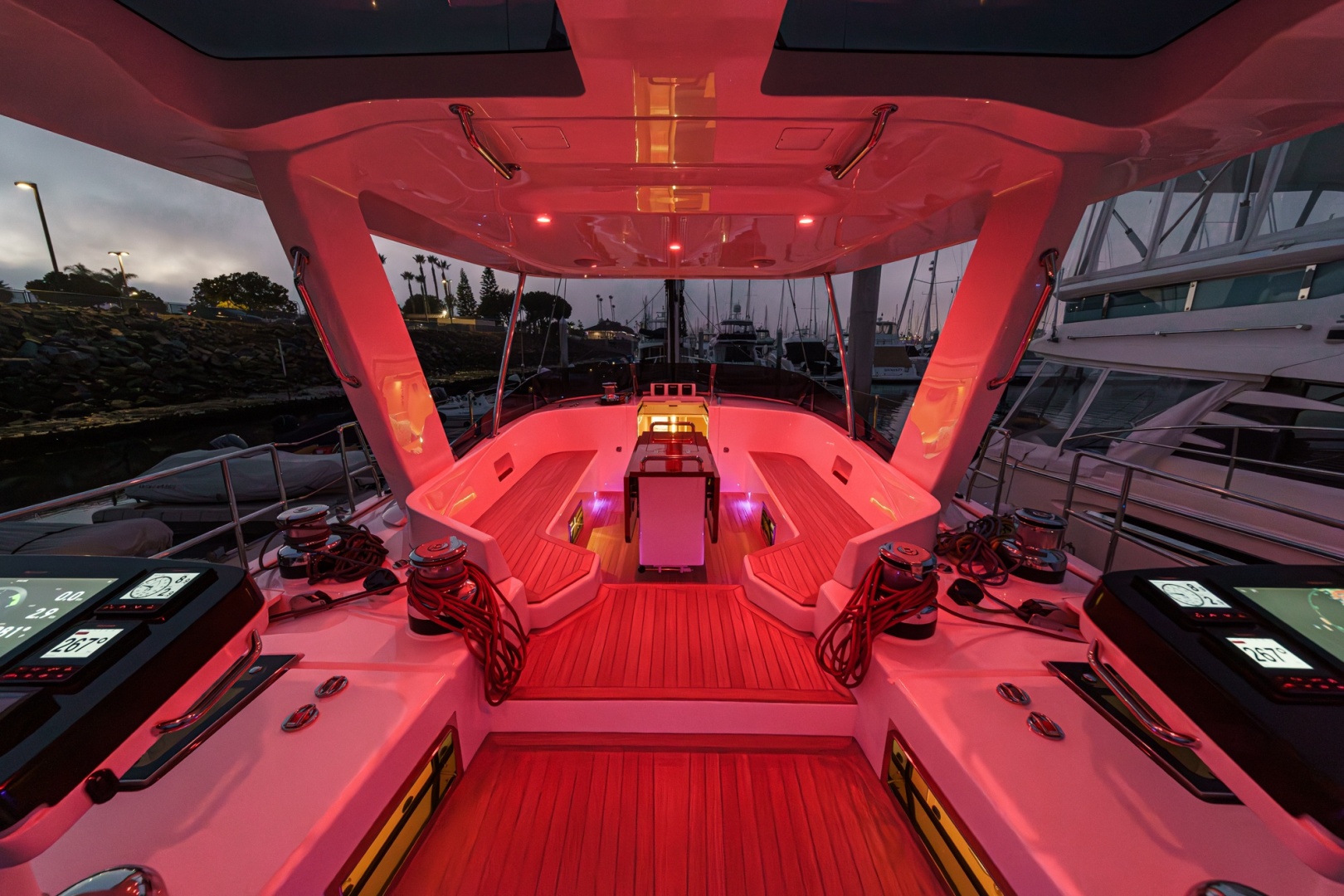

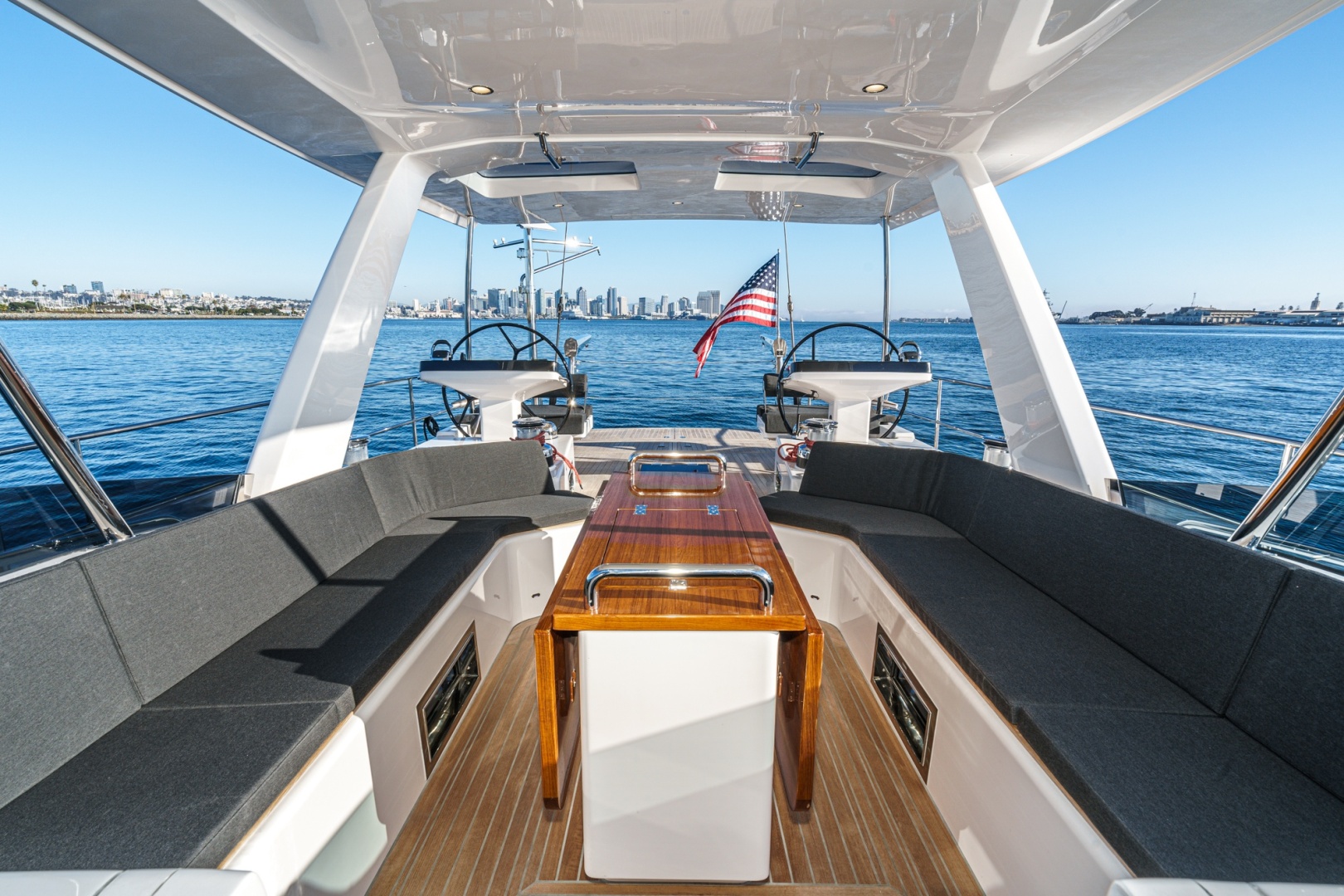

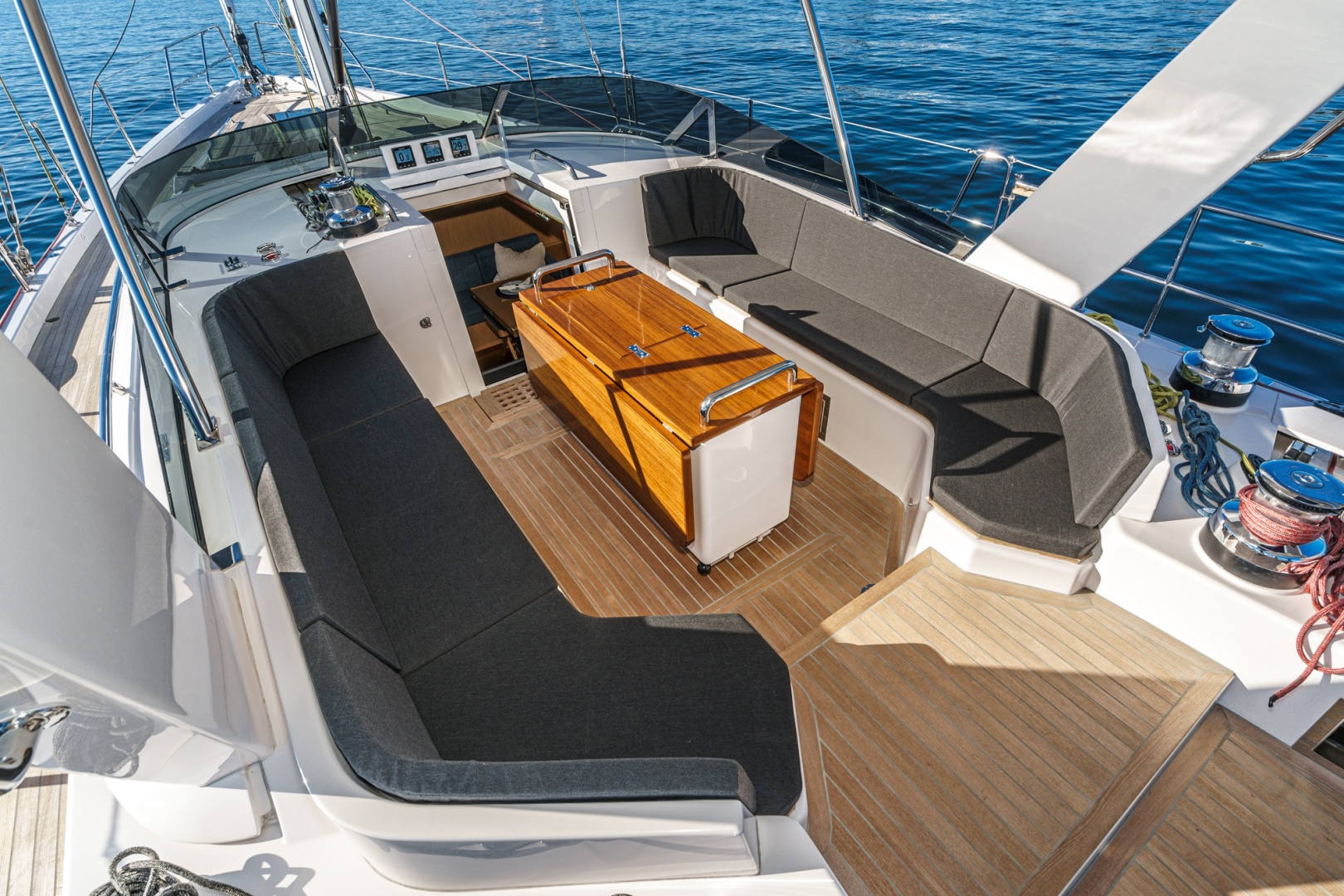

Center Cockpit

• Center cockpit with twin helm stations and separate cockpit lounge
• Twin 39" 5-spoke black Carbonautica composite steering wheels
• Extendable folding cockpit table with (2) handrails
• Cockpit cubbies with fiddles for winch handles
• Bonded 3/8" solid teak cockpit sole and seating surfaces
• Varnished solid teak cockpit lounge table
• Insulated top-access fiberglass beverage cooler
• Sliding companionway hatch
• Stainless steel companionway handrails
• Oversized self-bailing cockpit scuppers
• Stainless steel folding tether padeyes at companionway and both helms
• Hardtop with (2) aft fixed single-glazed panels
• White carbon-reinforced hardtop arch
• White fiberglass hardtop with stainless steel supports
• Handholds on both aft sides of hardtop arch
• (8) Harken 3207 folding 6mm jackline padeyes
• Protective covers for winches, helms, wheels, stern seats, deck hatches and cockpit table
• Pair of handholds beneath hardtop
• Spray shield
• Hylas-selected exterior upholstery

Hatches and Deck Lockers

• Forepeak deck locker forward of collision bulkhead
• Segmented primary and secondary anchor-chain/rode storage
• Separate sail locker with fender and dock-line storage
• Stainless steel forepeak access ladder
• Direct overboard forepeak drainage
• Full-beam lazarette with watertight clamp latches and port/starboard deck access
• Automatic Whale Gulper 320 24V lazarette bilge pump with manual override and high-water alarm
• Recessed self-draining liferaft locker aft of port helm
• Vented LPG deck locker with (2) 20-lb propane cylinders
• LPG regulator, dedicated plumbing, solenoid, controller and alarms for stove and BBQ
• (7) Manship stainless-framed acrylic deck hatches
• (4) opening cockpit-facing portlights
• Stainless steel hanging rails in sail locker and aft lazarettes
• Steering-system access through transom garage

Ground Tackle and Mooring

• Maxwell RC12 24V vertical windlass
• Bow foot controls
• AA560 windlass controller/chain counter at helm
• Ultra UA45 44kg/100-lb polished 316L stainless steel primary anchor
• Ultra Flip Swivel
• 300' of 3/8" high-tensile G4 galvanized anchor chain
• 1/2" and 3/8" galvanized anchor shackles
• Stainless steel bowsprit with (2) self-launching anchor receivers
• Divided primary and secondary anchor locker
• Direct access to windlass motor for servicing
• New England Ropes premium dock lines: (2) 25' x 3/4" bow lines, (2) 35' x 3/4" stern lines and (2) 50' x 3/4" spring lines
• (4) 12" x 34" Taylor fenders

Exterior Plumbing

• Hot/cold freshwater stern shower with handheld sprayer
• Freshwater washdown connections at bow and stern
• Saltwater washdown system with Jabsco Par-Max 6 pump and bow/stern quick-connect fittings
• Freshwater shore connection at transom

Sails and Rigging

Mast and Spars

• Solent-rigged Seldén aluminum 2-spreader mast
• Seldén electric Synchronized Main Furling (SMF) in-mast furling system
• Seldén boom
• Internal masthead wiring conduit
• (3) Antal mast-mounted halyard tension tracks
• Dedicated radar conduit
• Masthead Windex-style wind indicator

Vang, Backstay and Furling

• Twin Seldén HT-W12/14 black-anodized hydraulic backstay tensioners with 480mm stroke
• Seldén HV black-anodized hydraulic boom vang with 340mm stroke
• Seldén manual 4-function hydraulic control panel adjacent to helm
• Seldén 404E electric genoa furler
• Seldén 404E electric self-tacking jib furler

Standing and Running Rigging

• Discontinuous 316 stainless steel 1x19 wire standing rigging
• Sta-Lok mechanical standing-rigging fittings
• Side-sheeting arrangement eliminating central pedestal winch
• In-boom preventer led to cockpit
• SMF mainsail outhaul led to Seldén E52 smart cockpit winch with manual override
• Spectra-cored main, genoa, jib, spinnaker and spare halyards
• Genoa, jib and mainsheets led close to helm stations
• Mainsheet system with (3) Harken 100mm Black Magic blocks and (2) Harken 76mm high-load padeyes
• Pair of Harken R32 1.5m outboard genoa tracks with adjustable pin-stop cars
• Harken Black Magic 100mm genoa footblocks
• Vertically sheeted self-tacking jib system with (2) Harken 100mm blocks
• Coupled high-load jib cars on 3m Harken R32 track with adjustable pin stops
• Harken 100mm jib footblocks and 16mm fairleads
• Harken 100mm Black Magic redirect footblocks allowing selection of primary or secondary winches

Winches

• (2) electric Antal 66 XT chromed 2-speed self-tailing primary winches
• Seldén Synchronized Main Furling cockpit winch
• (2) electric Antal 66 XT chromed 2-speed self-tailing secondary winches
• Push-button electric winch controls at each winch
• (2) winch handles

Sails

• North Sails NPL Tour Xi offshore cruising sail package
• North Sails NPL Tour Xi NorLam white in-mast furling mainsail with (4) partial vertical battens
• North Sails NPL Tour Xi NorLam white 140% furling genoa
• North Sails NPL Tour Xi NorLam white furling Solent/self-tacking jib
• White Sunbrella UV covers for genoa, jib and mainsail tack

Mechanical Equipment

Steering

• Twin spade rudders positioned above the plane of the keel for grounding protection
• Jefa torque-tube and transmission gearbox steering system

Engine Room

• Full-height engine-room access from navigation station
• Multiple additional machinery service-access points
• CE-approved fire-retarding and noise-dampening engine-room insulation
• (2) Jabsco continuous-duty 250 cu. ft./min engine-room extraction blowers with 4" exhausts
• Electric oil-change pump servicing engine, generator and transmission

Fuel System

• Dual Racor 500 main-engine fuel filtration system
• Fuel-filter vacuum gauge
• Water-contamination alarm
• Independent filtration, polishing and bypass capability
• Flame guards beneath fuel filters
• Walbro engine fuel-transfer pump
• Simarine fuel-tank monitoring at navigation station

Freshwater System

• (2) independent Marco UP14/E 24V freshwater pumps plumbed in parallel for redundancy
• Torrid 17-gallon stainless steel water heater, 110V AC and engine heated
• Pre-plumbing and wiring beneath forward VIP berth for future watermaker installation
• Headhunter 4.4-gallon polypropylene-lined steel pressure accumulator
• Simarine freshwater-tank monitoring at navigation station

Black and Gray Water Systems

• Dometic Sealand holding-tank ventilation filter
• Gray-water collection system designed to minimize water and moisture in bilge
• Forward gray-water sump with (2) Gulper pumps serving forward sink, shower and air-conditioning condensate
• Direct-overboard anchor-locker and sail-locker drainage
• Galley gray-water sump with Gulper pump serving galley sink and refrigerator drain
• Aft gray-water sump with Gulper 320 pump serving master-head sink, shower and aft air-conditioning condensate

Thrusters

• Side-Power E170/250TC-24V variable-speed bow thruster
• Twin 5-blade counter-rotating bow-thruster propellers
• 10.7 hp bow-thruster output at 21V
• Bow-thruster controls at both helms
• Side-Power SRLP170/250T retractable variable-speed stern thruster
• 170kg stern-thruster thrust
• RCS-20E stern-thruster remote-control kit

Air Conditioning

• Termodinamica HVAC system
• (2) 18,000 BTU saloon units providing 36,000 BTU total
• (1) 18,000 BTU unit serving forward VIP cabin, guest cabin and forward head
• (1) 18,000 BTU unit serving aft master cabin and aft head
• HVAC condensate drains routed to gray-water system

Bilge System

• Rule 4000 24V primary bilge pump rated at 4,000 GPH
• Automatic float switch, high-water alarm and manual override for primary bilge pump
• Whale Gulper 320 24V secondary bilge pump
• Whale Gulper 320 24V transom-garage bilge pump with automatic float switch, high-water alarm and manual override
• Whale Gusher 10 manual cockpit bilge pump rated up to 17 GPM

Safety Equipment

• Hylas Signature watertight bow and stern sections
• Reinforced and sealed collision bulkhead forward of VIP cabin
• Recessed self-draining liferaft locker
• Stainless steel folding tether padeyes at companionway and both helms
• (8) Harken folding jackline padeyes
• Fireboy 200 cu. ft. automatic engine-room fire-suppression and alarm system
• Fireboy remote fire-system panels at cockpit and navigation station
• Fireboy Halotron 5-lb handheld fire extinguisher with engine-compartment fire port
• (3) Hygrapha 5-lb dry-chemical handheld fire extinguishers
• Fire blanket in galley
• Fireboy-Xintex P-2BS-R propane/CNG fume detector with (2) sensors for stove and BBQ
• Fireboy-Xintex SS-775 smoke and fire detector in galley
• LPG solenoid, controller and alarms
• Automatic and manual bilge pumping systems
• High-water alarms for primary bilge and transom-garage systems
• 32" stainless steel stanchions and boarding gates
• Stainless steel handrails
• Twin spade rudders protected above plane of keel

Engine Info

• Yanmar 150 hp marine diesel engine
• HS Hydraulic 2.43:1 reduction gearbox
• Yanmar engine control panels at both helms
• Engine alarms for low oil pressure and high coolant temperature
• Tachometer
• Engine-hour meter
• Voltage display
• Engine temperature gauge
• Oil-pressure gauge
• Custom engine water separator for quieter operation and protection against flooding
• Custom raised exhaust elbow for protection against engine flooding
• Bruntons Varifold 4-blade 23" folding propeller
• Aqualoy A22 1.75" stainless steel propeller shaft
• PYI PSS Pro dripless shaft seal, model 03-134-212
• Nickel Aluminum Bronze P-bracket with substantial stainless steel backing plate and solid fiberglass hull reinforcement
• Bruntons Sigma Drive SD225
• Spurs 1-3/4" shaft-line rope cutter

Tankage

• Fuel: 286 US gallons total
• (2) independent 143-gallon diesel tanks
• Fuel tanks constructed of 316L stainless steel
• Fuel tanks located beneath saloon floor aft of freshwater tanks
• Threaded fuel-tank inspection ports for access and manual dipstick measurements
• Large fuel-tank maintenance access ports for cleaning
• Fresh Water: 260 US gallons total
• (2) independent 130-gallon freshwater tanks
• Freshwater tanks constructed of 316L stainless steel
• Freshwater tanks located beneath saloon floor forward of fuel tanks
• Threaded freshwater-tank inspection ports for access and manual dipstick measurements
• Freshwater-tank maintenance access ports for cleaning
• Black Water/Holding: 63 US gallons total
• 23-gallon forward holding tank
• 40-gallon aft holding tank
• Dedicated fiberglass holding tank for each head
• (2) 20-lb LPG/propane cylinders in dedicated vented deck locker
